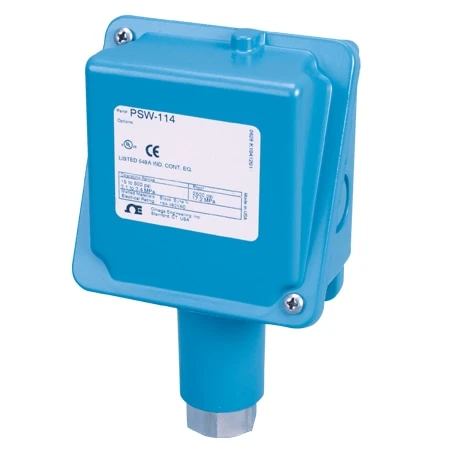

General Purpose Industrial Pressure Switch
Original price was: $375.00.$98.99Current price is: $98.99.
- UL Listed,
- Ranges from 0.5 inH2O to 3000 psi
- SPDT or DPDT Switches
- Adjustment Lock
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
OMEGA’s affordable, general purpose pressure switches offer distinct advantages over most similar style switches, including DPDT or adjustable deadband switches, as well as a wide selection of adjustable ranges from 0.5 inH2O to 3000 psi.
SPECIFICATIONS
Approval: UL listed,
Storage Temperature: -55 to 70°C (-67 to 158°F)
Process Temperature:
   Stainless Steel: -55 to 205°C (-67 to 401°F)
   Phosphor Bronze: -40 to 150°C (-40 to 302°F)
   Buna-N: -25 to 95°C (-13 to 203°F)
Ambient Temperature: -40 to 70°C (-40 to 158°F), except models PSW-107 to PSW-117 and PSW-134 to PSW-139: -20 to 70°C (-4 to 158°F). Setpoint typically shifts less than 1% of range for a 30°C (54°F) ambient temperature change.
Shock: Setpoint repeats after 15 g, 10 ms duration.
Vibration: Setpoint repeats after 2.5 g, 5 to 500 Hz
SetPoint Repeatability: All models ±1% of adjustable range, except models PSW-118 to PSW-125 and PSW-132 to PSW-133 are ±1.5%
Switch Output: One SPDT or DPDT switch may be wired normally open or normally closed
Electrical Rating: Standard 15 A 125/250/480 Vac resistive External Manual Reset: 15 A 125/250 Vac resistive Double Pole Double Throw: 10 A 125/250 Vac resistive
Enclosure: Die cast aluminum (max. 0.6% copper). Epoxy-coated blue enclosure, gasketed, complies with NEMA-4X
Weight: Approximately 0.9 kg (2 lb)
Electrical Connection: 1/2 NPT and Two 7/8′ diameter knockouts
Dimensions: 191 max H x 101 W x 60 mm D (7.5 max 4 x 2.3′)
| Switch Type | (1) 15 A SPDT, (1) 10 A DPDT |
|---|---|
| Pressure Range | 1 to 20 psi, 2 to 50 psi, 1.5 to 30 psi, 3 to 100 psi, 9 to 300 psi, 15 to 500 psi, 30 to 1,000 psi, 5 to 30 psi, 10 to 100 psi, 15 to 300 psi, 20 to 500 psi, 80 to 1,700 psi, -15 to 0 psi, 125 to 3,000 psi, -10 to 10 inH2O, -50 to 50 inH2O, 2.5 to 50 inH2O |
| Pressure Type | Gauge, Compound Gauge |
| Pressure Port Size | 1/2", 1/4" |
| Deadband | Fixed, Adjustable |
| Deadband Range | 0.1 to 1 psi, 0.1 to 1.5 psi, 1 to 2 psi, 1 to 4 psi, Not Applicable, 11.3 psi, 3 to 7 psi, 1 to 5 psi, 4 to 11 psi, 2 to 8 psi, 5 to 12 psi, 3 to 20 psi, 1 to 3 psi, 1 to 8 psi, 3 to 18 psi, 4 to 30 psi, 5 to 120 psi, 1 to 2 inHg, 40 to 250 psi, 0.1 to 0.6 inWC, 0.1 to 3.0 inH2O, 0.1 to 0.8 inH2O |
| Features | Standard, External Manual Reset, DPDT Switch |
| Pressure Port Type | NPT Female |
