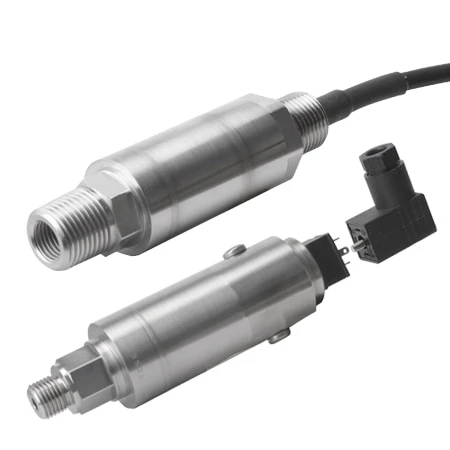

General Purpose, Intrinsically Safe Pressure Transmitters

Original price was: $375.00.Current price is: $99.99.

FM Intrinsically Safe Rating Standard
Rugged Thick Film Sensing Element
All Stainless Steel Construction
Sealed SS Case for Harsh Environments

Pressure Range

Pressure Type

Pressure Port Size

Pressure Port Type

Connection/Termination

Additional Features

Clear

SKU: PX51C5-3.5KGC2IS Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA’s PX51 Series consists of high-accuracy, low-cost pressure transmitters. Their sealed, all stainless steel construction makes them suitable for the harshest environments. They are available in gage, absolute, or sealed gage models. Ten feet of PVC insulated shielded cable is standard, or a twist-lock style connector is also available. This latest addition of the FM Approved Intrinsically Safe version for Hazardous Locations (available with 4-20 mA output) only further expands the range of applications of this versatile product family.

Recognized and respected across the globe, FM Approvals certification assures customers a product or service that has been objectively tested and conforms to the highest national and international standards. Please refer to FM Approvals for downloadable copies of FM Approvals Certificate of Compliance and Installation Control Drawings.

The PX51-IS is also available in metric configurations, with ranges from 0-0.7 bar to 0-400 bar ranges and metric threads. Please see PXM51-IS for complete details, or contact our Pressure department for more information.

Pressure Range	0 to 3500 psi, 0 to 1500 psi, 0 to 75 psi, 0 to 7,500 psi, 0 to 2500 psi
Pressure Type	Gauge, Absolute
Pressure Port Size	1/4", 7/16", 1/2×1/4"
Pressure Port Type	NPT Male, UNF Male, NPT MxF
Connection/Termination	M12, Cable, MIL-26482-I 10-6P, Mini DIN 43650 C, Submersible Cable with Conduit
Additional Features	Intrinsically Safe IS FM Approval, Intrinsically Safe IS FM Approval No Potentiometer
Accuracy Class	0.1% to 0.25%
Accuracy Value(compensated range)	±0.25%
Output Signal	Current
Electrical output	4 to 20 mA
Operating Temperature Range	-40 to 75 °C (-40 to 167 °F)
