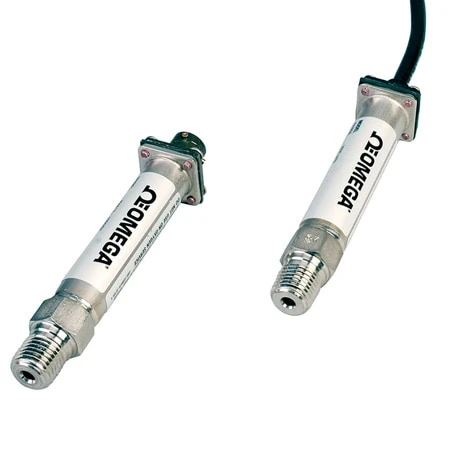

General Purpose Pressure Transducers With Adjustable Zero & Span

Original price was: $330.00.Current price is: $97.99.

Excellent Long Term Stability
All Stainless Steel Construction
NEMA 4 Cable or Connector Models
0.4% Accuracy

Pressure Range

Pressure Type

Output Signal

Electrical output

Pressure Port Type

Connection/Termination

Additional Features

Clear

SKU: PX605-100GI Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SPECIFICATIONS
Excitation: 10 to 36 Vdc unregulated
Output: PX603/PX613 Series: 1 to 5 Vdc (3 wire)
PX605/PX615 Series: 4 to 20 mA (2 wire)
Supply Current: <3.0 mA
Insulation Resistance: 100 MΩ @ 50 V
Accuracy: ±0.4% BFSL (Includes non-linearity, hysteresis and non-repeatability errors)
±1.0% Terminal Point Method Includes non-linearity, hysteresis, non-repeatability, zero offset and span setting errors
Hysteresis: ±0.2% FS
Repeatability: ±0.07% FS
Stability: ±1.0%/year
Durability: 100 million cycles
Operating Temperature: -28 to 82°C (-20 to 180°F)
Compensated Temperature: -28 to 71°C (-20 to 160°F)
Thermal Zero Effect: ±0.04% FS/°F
Thermal Span Effect: ±0.04% FS/°F
Proof Pressure:
    15 to 2000 psi = 200% FS
    3000 to 5000 psi = 150% FS
    7500 to 20,000 psi = 120% FS
Burst Pressure:
    15 to 2000 psi = 800% FS
    3000 to 5000 psi = 300% FS
    7500 to 20,000 psi = 150% FS
Gages: Thin-film polysilicone
Diaphragm: 17-4 PH stainless steel
Case: 300 Series stainless steel
Pressure Connection:
    15 to 10,000 psi = ¼ NPT
    >10,000 psi = female Aminco fitting (9/16-18 UNF)
Electrical Connection: 0.9 m (36′) braided-shield PVC cable or connector
Mating Connector: PT06F8-4S (not included)
Weight: 128 g (4.5 oz) without cable
Response Time: 5 ms
Construction: Sealed units, except PX603 and PX605 ≤500 psi is vented to room

Pressure Range	0 to 100 psi, 15 psi (1.0 bar), 30 psi (2.1 bar), 60 psi (4.1 bar), 100 psi (6.9 bar), 10,000 psi (689 bar), 150 psi (10.3 bar), 15,000 psi (1034 bar), 0 to 15,000 psi, 1000 psi (68.9 bar), 0 to 1000 psi, 200 psi (13.8 bar), 20,000 psi (1379 bar), 2000 psi (138 bar), 300 psi (20.7 bar), 3000 psi (207 bar), 500 psi (34.5 bar), 5000 psi (345 bar), 7500 psi (517 bar), 0 to 15 psi, 0 to 30 psi, 0 to 60 psi, 0 to 10000 psi, 0 to 150 psi, 0 to 200 psi, 0 to 20,000 psi, 0 to 2,000 psi, 0 to 300 psi, -15 to 15 psi, -15 to 30 psi, -15 to 60 psi, 0 to -30 inHg, 0 to 3,000 psi, 0 to 500 psi, 0 to 5000 psi, 0 to 7,500 psi
Pressure Type	Gauge, Compound Gauge, Vacuum
Output Signal	Current, Ratiometric mV/V, Voltage
Electrical output	4 to 20 mA, 10 mV/V, 1 to 5 Vdc, 0 to 5 Vdc
Pressure Port Type	NPT Male, High Pressure F-250-C
Connection/Termination	Cable, MIL-26482-I 8-4P
Additional Features	Not Applicable, Cleaned for oxygen service, 12ft Cable, NIST Calibration Certificate
Accuracy Class	> 0.25%
Accuracy Value(compensated range)	±0.4%
Pressure Port Size	1/4"
Operating Temperature Range	-48 to 90 °C (-55 to 195 °F)
