General Purpose Pressure Transmitters
Original price was: $306.00.$99.99Current price is: $99.99.
-
This product is no longer available. Please check out our PX309 Serie.
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
LAST TIME BUY. Product family has been discontinued – only products shown as In Stock may be ordered

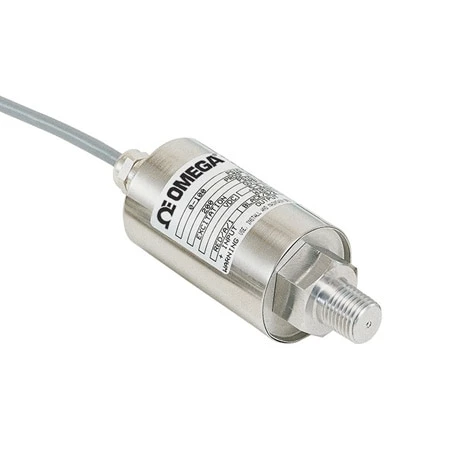

The PX305 transmitters are general purpose, industrial grade transducers, ideal for use in general industrial applications when a robust transducer is required. Wetted parts are constructed of 17-4PH and 300 Series Stainless Steel, with NEMA 4 enclosures constructed of 304 Stainless Steel. These units feature a stable, diffused silicon sensor that achieves .25% accuracy, and have pressure ranges from 0-10,000 psi.
| Pressure Range Max | 1000, 3000 |
|---|---|
| Pressure Range | 0 to 1000 psi, 0 to 3,000 psi |
| Pressure Range Unit | psi |
| Pressure Range Min | 0 |
| Pressure Type | Gauge |
| Accuracy Class | 0.1% to 0.25% |
| Accuracy Value (compensated range) | ±0.25% |
| Output Signal | Current |
| Electrical output | 4 to 20 mA |
| Pressure Port Size | 1/4" |
| Pressure Port Type | NPT Male |
| Connection/Termination | Mini DIN 43650 C |
