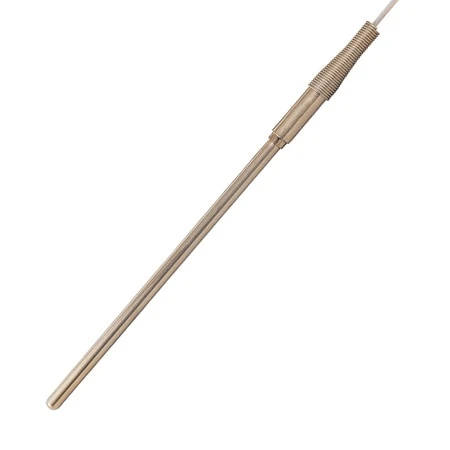

General Purpose RTD (PT100) Probe With Metal Strain Relief

Original price was: $188.84.Current price is: $99.99.

General Purpose PT-100 RTD Sensor, 100 Ohms at 0C.
Accuracy is IEC/DIN Class A (±0.15°C at 0°C)
Temperature Range -200 to 600°C
Temperature Coefficient : 0.00385 Ohm/Ohm/C Nominal

Process Temperature Min

Process Temperature Max

Process Temperature Range

Number Of Wires

Probe Diameter

Probe Length

Cable Insulation

Cable Length

Termination Connection Type

Clear

SKU: PR-11-2-100-1/16-12-E Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

A general purpose RTD probe with transition style junction. Comes with 36′ PFA coated lead wires. Standard probe lengths are 6, 12, 18, 24 inch. Standard diameters are 1/16, 1/8, 3/16, 1/4 inch. Stripped end termination is standard.
For additional lead length over 36′, add $2.25 per foot (Style 2 and 3) and $1.40 per foot (Style 1).
Non-standard probe lengths are available, consult Sales Department. PFA coating and dual sensor probes are also available on request.

Examples of pricing for popular models is referenced in the ‘To Order’ box. Use the ‘Part Number Builder’ below to get pricing for all available models.

Process Temperature Min	-30, -200
Process Temperature Max	350, 600
Process Temperature Range	-30 to 350°C (-22 to 662°F), -200 to 600°C (-328 to 1112°F)
Number Of Wires	3, 2, 4
Probe Diameter	0.062 in, 6.00 mm
Probe Length	12 in, 4 in, 18 in, 24 in, 6 in, 9 in, 150 mm
Cable Insulation	PFA, Fiberglass, PFA with Stainless Steel Overbraid, Fiberglass with Stainless Steel Overbraid
Cable Length	40 in, 96 in, 120 in, 180 in
Termination Connection Type	Stripped Leads, none, TA3F connector, HH804 Connector
Category	RTD
Process Temperature Unit	°C
Sensor Application	Immersion Probe
Accuracy	Class A per IEC60751
Nominal Resistance	100 Ω
Sheath Material	304 Stainless Steel
Wire Gauge	26 AWG
