Sale!

Handheld High Temperature Surface Thermocouple Probes

Original price was: $214.70.Current price is: $99.99.

Type K, E, or J Thermocouple Calibrations
Type K Measures Temperature up to 1100°C (2000°F)
SMP Miniature Male Connector Termination on End of Retractile Cord
12 In. Probe is Standard. Other Lengths Available.

Thermocouple Type

Process Temperature Max

Process Temperature Range

Probe Length

Clear

SKU: HPS-HT-J-12-SMP-M Categories: Handheld Probes, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

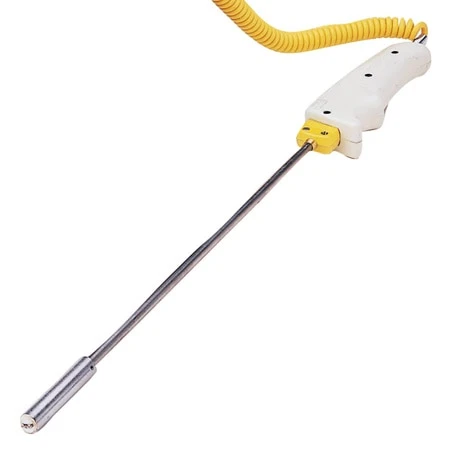

OMEGA’s High Temperature Surface Probe features a thermocouple alloy spring-loaded sensing element to ensure consistent readings. The twelve-inch probe comes with an SMP Male Connector termination and a 0.3 mm (1 ft.) retractable sensor cable (stretches to 1.5 m (5 ft.). Available in thermocouple types J, K, or E, the HPS-HT probe can measure temperatures up to 1100°C (2000°F), type K only.

SPECIFICATIONS
Maximum Short-Term Temperature Rating:
    Type K: 1100°C (2000°F)
    Type E: 870°C (1600°F)
    Type J: 760°C (1400°F)
Maximum Handle Temperature: 70°C (160°F)
Length: 300 mm (12″) (custom lengths available)
Cable: 300 mm (1′) retractable, stretches to 1.5 m (5′); miniature thermocouple (SMPW) connector

Thermocouple Type	J, E, K
Process Temperature Max	760, 870, 1100
Process Temperature Range	0 to 760°C (32 to 1400°F), 0 to 870°C (32 to 1600°F), 0 to 1100°C (32 to 2000°F)
Probe Length	12 in, 3 in, 24 in, 36 in, 6 in
Category	Thermocouple
Process Temperature Unit	°C
Process Temperature Min	0
Sensor Application	Surface Probes
Junction Type	None
Probe Diameter	0.250 in
Sheath Housing Material	304 Stainless Steel
Cable Insulation	TPE (Thermo Plastic Elastomer)
Wire Gauge	28 AWG
Cable Length	60 in
Termination Connection Type	Mini Male connector
