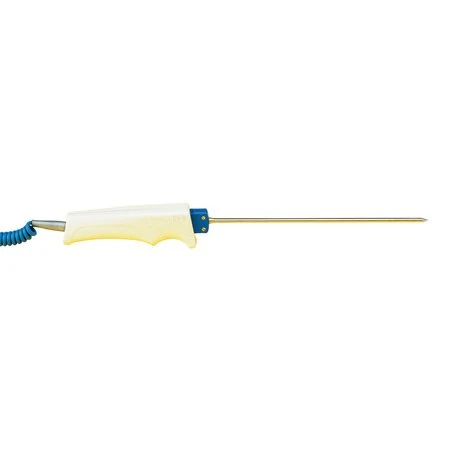

Handheld Thermocouple Probes With Custom Tip Options

Original price was: $174.86.Current price is: $96.99.

Penetration Probe
Fast Response Probe
Flexible Tip Surface Probe
Air Probe

Thermocouple Type

Process Temperature Max

Process Temperature Range

Sensor Application

Junction Type

Probe Diameter

Probe Length

Clear

SKU: HPS-AP-J-316E-12 Categories: Handheld Probes, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Penetration Probe:(NP)
Tip designed for easy penetration into soft and semi-frozen objects. Made from rugged 304 stainless steel. Tip rated to 900°C (1650°F).

Fast Response Probe:(RT)Special small diameter ( 1/16″) tip designed for fast response. Made from 304 stainless steel. Tip rated to 900°C (1600°F).

Flexible Tip Surface Probe:(FSP)Flexible tip which conforms to most surfaces for fast, repeatable, accurate measurements. Made from RTV silicone rubber for good thermal contact. Tip rated to 260°C (500°F). Warning: Subjecting sensor tip to temperatures above 600°F will result in damage to tip. Flexible Tip Surface Probe & Air Probe Available in exposed junction only

Air Probe:(AP)
Radiant energy shield with fine-gage wire thermocouple and 304 stainless steel sheath. Thermocouple tip is exposed to air flow for fast measurements, and the constant diameter design facilitates easy insertion into duct work, grilles and air vents. Tip rated to 870°C (1650°F). Flexible Tip Surface Probe & Air Probe Available in exposed junction only

Thermocouple Type	J, E, K, T
Process Temperature Max	620, 870, 370, 260, 900, 400, 315
Process Temperature Range	0 to 620°C (32 to 1150°F), 0 to 870°C (32 to 1600°F), 0 to 370°C (32 to 700°F), 0 to 260°C (32 to 500°F), 0 to 900°C (32 to 1650°F), 0 to 400°C (32 to 752°F), 0 to 315°C (32 to 600°F)
Sensor Application	Air Probe, Surface Probes, Penetration Probe, Reduced Tip Probe
Junction Type	Exposed, None, Grounded
Probe Diameter	0.187 in, 0.250 in, 0.062 in, 0.125 in
Probe Length	12 in, 6 in, 24 in, 36 in
Category	Thermocouple
Process Temperature Unit	°C
Process Temperature Min	0
Sheath Housing Material	304 Stainless Steel
Cable Insulation	TPE (Thermo Plastic Elastomer)
Wire Gauge	28 AWG
Cable Length	60 in
Termination Connection Type	Mini Male connector
