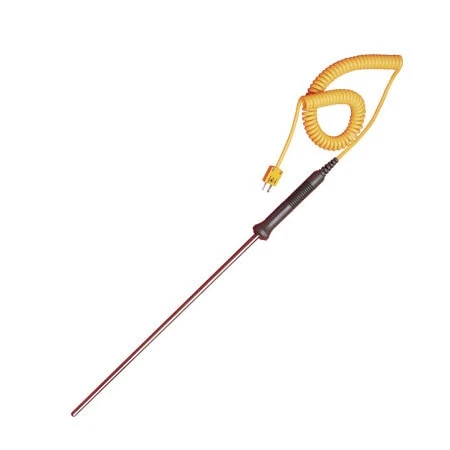

Handheld Thermocouple Probes With Fixed Length Or Retractable Cable
Original price was: $104.58.$73.21Current price is: $73.21.
- Made with Special Limits of Error Material
- Molded Handle Rated to 220°C (425°F)
- Available with fixed length cable, or retractable cable that expands to 1.5 m (5 ft.)
- Subminiature Connector for Use with Handheld Thermometers
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
Handle is permanently molded to probe sheath. Includes cable and miniature connector. A multi-use, low cost, versatile thermocuple which can be used with any handheld. Available off the shelf in many configurations.
| Thermocouple Alloy | Sheath Dia. mm(in.) | Model No. 300mm(12″) Length | Model No. 450mm(18″) Length | Model No. 600mm(24″) Length |
| J Iron-Constantan Inconel Sheath | 1.5 (1/16) 3.0 (1/8) 4.5 (3/16) 6.0 (1/4) | JHIN-116(*)-RSC-12 JHIN-18(*)-RSC-12 JHIN-316(*)-RSC-12 JHIN-14(*)-RSC-12 | JHIN-116(*)-RSC-18 JHIN-18(*)-RSC-18 JHIN-316(*)-RSC-18 JHIN-14(*)-RSC-18 | JHIN-116(*)-RSC-24 JHIN-18(*)-RSC-24 JHIN-316(*)-RSC-24 JHIN-14(*)-RSC-24 |
| J Iron-Constantan 304 SS Sheath | 1.5 (1/16) 3.0 (1/8) 4.5 (3/16) 6.0 (1/4) | JHSS-116(*)-RSC-12 JHSS-18(*)-RSC-12 JHSS-316(*)-RSC-12 JHSS-14(*)-RSC-12 | JHSS-116(*)-RSC-18 JHSS-18(*)-RSC-18 JHSS-316(*)-RSC-18 JHSS-14(*)-RSC-18 | JHSS-116(*)-RSC-24 JHSS-18(*)-RSC-24 JHSS-316(*)-RSC-24 JHSS-14(*)-RSC-24 |
| K CHROMEGA™-ALOMEGA™ ** Inconel Sheath | 1.5 (1/16) 3.0 (1/8) 4.5 (3/16) 6.0 (1/4) | KHIN-116(*)-RSC-12 KHIN-18(*)-RSC-12 KHIN-316(*)-RSC-12 KHIN-14(*)-RSC-12 | KHIN-116(*)-RSC-18 KHIN-18(*)-RSC-18 KHIN-316(*)-RSC-18 KHIN-14(*)-RSC-18 | KHIN-116(*)-RSC-24 KHIN-18(*)-RSC-24 KHIN-316(*)-RSC-24 KHIN-14(*)-RSC-24 |
| K CHROMEGA™-ALOMEGA™ ** 304 SS Sheath | 1.5 (1/16) 3.0 (1/8) 4.5 (3/16) 6.0 (1/4) | KHSS-116(*)-RSC-12 KHSS-18(*)-RSC-12 KHSS-316(*)-RSC-12 KHSS-14(*)-RSC-12 | KHSS-116(*)-RSC-18 KHSS-18(*)-RSC-18 KHSS-316(*)-RSC-18 KHSS-14(*)-RSC-18 | KHSS-116(*)-RSC-24 KHSS-18(*)-RSC-24 KHSS-316(*)-RSC-24 KHSS-14(*)-RSC-24 |
| E CHROMEGA™-Constantan Inconel Sheath | 1.5 (1/16) 3.0 (1/8) 4.5 (3/16) 6.0 (1/4) | EHIN-116(*)-RSC-12 EHIN-18(*)-RSC-12 EHIN-316(*)-RSC-12 EHIN-14(*)-RSC-12 | EHIN-116(*)-RSC-18 EHIN-18(*)-RSC-18 EHIN-316(*)-RSC-18 EHIN-14(*)-RSC-18 | EHIN-116(*)-RSC-24 EHIN-18(*)-RSC-24 EHIN-316(*)-RSC-24 EHIN-14(*)-RSC-24 |
| E CHROMEGA™-Constantan 304 SS Sheath | 1.5 (1/16) 3.0 (1/8) 4.5 (3/16) 6.0 (1/4) | EHSS-116(*)-RSC-12 EHSS-18(*)-RSC-12 EHSS-316(*)-RSC-12 EHSS-14(*)-RSC-12 | EHSS-116(*)-RSC-18 EHSS-18(*)-RSC-18 EHSS-316(*)-RSC-18 EHSS-14(*)-RSC-18 | EHSS-116(*)-RSC-24 EHSS-18(*)-RSC-24 EHSS-316(*)-RSC-24 EHSS-14(*)-RSC-24 |
| T Copper-Constantan Inconel Sheath | 1.5 (1/16) 3.0 (1/8) 4.5 (3/16) 6.0 (1/4) | THIN-116(*)-RSC-12 THIN-18(*)-RSC-12 THIN-316(*)-RSC-12 THIN-14(*)-RSC-12 | THIN-116(*)-RSC-18 THIN-18(*)-RSC-18 THIN-316(*)-RSC-18 THIN-14(*)-RSC-18 | THIN-116(*)-RSC-24 THIN-18(*)-RSC-24 THIN-316(*)-RSC-24 THIN-14(*)-RSC-24 |
| T Copper-Constantan 304 SS Sheath | 1.5 (1/16) 3.0 (1/8) 4.5 (3/16) 6.0 (1/4) | THSS-116(*)-RSC-12 THSS-18(*)-RSC-12 THSS-316(*)-RSC-12 THSS-14(*)-RSC-12 | THSS-116(*)-RSC-18 THSS-18(*)-RSC-18 THSS-316(*)-RSC-18 THSS-14(*)-RSC-18 | THSS-116(*)-RSC-24 THSS-18(*)-RSC-24 THSS-316(*)-RSC-24 THSS-14(*)-RSC-24 |
*Specify junction type: E (Exposed), G (Grounded), U (Ungrounded) or S (Surface). Note: PFA Coating is available, molded in place. Order standard part number with a suffix “-PFA”. Price: add $20 to 300 mm (12″) probes, $25 to 600 mm (24″) probes. 200°C (400°F) Max.
**For highest temperature and stability rating, change “SS” or “IN” to “XL” and add $3 to price.
Read this article if you need help in selecting the thermocouple junction
View the Thermocouple Accuracy and Color Code charts
| Thermocouple Type | T, E, J, K |
|---|---|
| Cable Length | 60 in, 40 in |
| Process Temperature Unit | °C |
| Category | Thermocouple |
| Cable Type | Retractable, Fixed Length |
| Additional Feature | With Batch Calibration Cert, None |
| Color Code Standard | ANSI (Standard), IEC |
| Termination Connection Type | Mini Male connector, Standard Male Connector |
| Wire Gauge | 28 AWG, 24 AWG |
| Process Temperature Max | 370, 510, 820, 650, 730, 720, 440, 900, 520, 620, 920, 115, 107, 315, 260 |
| Cable Insulation | TPE (Thermo Plastic Elastomer), PFA |
| Probe Length | 12 in, 24 in, 18 in, 300 mm, 36 in, 6 in, 1000 mm, 600 mm, 48 in, 60 in, 72 in, 150 mm, 100 mm, 200 mm, 450 mm, 500 mm, 3 in |
| Sheath Housing Material | Inconel® 600, 304 Stainless Steel, 316 Stainless Steel |
| Probe Diameter | 0.250 in, 0.062 in, 0.125 in, 0.187 in, 1.50 mm, 3.00 mm, 4.50 mm, 6.00 mm |
| Junction Type | Grounded, Ungrounded, Exposed |
| Sensor Appliaction | Immersion Probe, Penetration Probe, Air Probe |
| Process Temperature Range | 0 to 370°C (32 to 700°F), 0 to 510°C (32 to 950°F), 0 to 820°C (32 to 1510°F), 0 to 650°C (32 to 1200°F), 0 to 730°C (32 to 1350°F), 0 to 720°C (32 to 1300°F), 0 to 440°C (32 to 825°F), 0 to 900°C (32 to 1650°F), 0 to 520°C (32 to 970°F), 0 to 620°C (32 to 1150°F), 0 to 920°C (32 to 1690°F), 0 to 1150°C (32 to 2100°F), 0 to 1070°C (32 to 1960°F), 0 to 315°C (32 to 600°F), 0 to 260°C (32 to 500°F) |
| Process Temperature Min | 0 |
