Heavy Duty Flowmeters With Stainless Steel Enclosures
Original price was: $321.00.$99.99Current price is: $99.99.
- Heavy Duty 304 SS Case and Covers
- 316 SS Rotatable Fittings Feature Dual Ports for Vertical or Horizontal Mounting
- Unique Float Stop Design Allows Internals to Be Removed and Replaced Without Disturbing Tube or Shield
- NIST Calibration Available
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

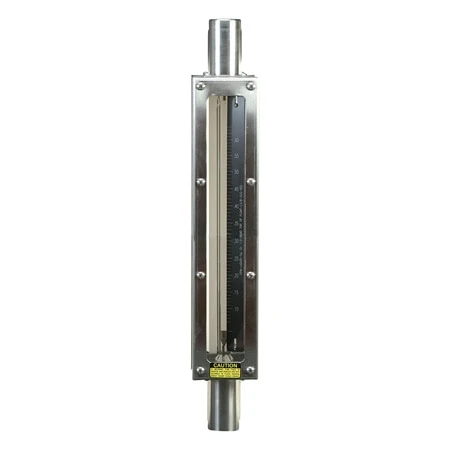

The Omega FL900 series are heavy duty flowmeter with stainless steel enclosures, unique float stop design allowing internals to be reomoved and replaced without disturbing the tube and the tube has a direct reading scale. The accuracy is ±2% of full scale, repeatability is ±1%, the scale is 250 mm or 10 inches, the wetted parts are as follows: 316 stainless steel, EPR o-rings, and borosilicate glass.
SPECIFICATIONS
Accuracy: ±2% FS
Repeatability: ±0.5%
Scale: 250 mm (10′)
Scale Plate and Shield: Polycarbonate
Wetted Parts: 316L SS, EPR O-rings, borosilicate glass
Max Temp: 93°C (200°F)
Turndown: 10:1
| Water Models | Air Models | Max Pressure PSIG | Wt. kg (lb) | |||||
| Model No. | Max GPM | ΔP inH2O | Ports NPT | Model No. | Max SCFM | Ports NPT | ||
| FL-901G | 0.64 | 7 | ½ | FL910G | 2.7 | ½ | 300 | 9 (20) |
| FL-902G | 2.26 | 41 | ½ | FL911G | 10.2 | ½ | 300 | 9 (20) |
| FL-903G | 5.20 | 18 | 1 | FL912G | 22.0 | 1 | 250 | 9 (20) |
| FL-904G | 12.60 | 13 | 1 | – | – | – | 250 | 9 (20) |
| FL-904P | 34.50 | 110 | 1 | FL913P | 100.0 | 1 | 250 | 9 (20) |
| FL-906P | 34.0 | 24 | 1½ | FL915P | 102.0 | 1½ | 150 | 13.6 (30) |
| FL-908P | 132.0 | 60 | 2 | FL917P | 350.0 | 2 | 125 | 13.6 (30) |
| Media Type | Water, Air |
|---|---|
| Gas Flow Range | Not Applicable, 0.27 to 2.7 SCFM, 1.02 to 10.2 SCFM, 2.2 to 22 SCFM, 10 to 100 SCFM, 10.2 to 102 SCFM, 35 to 350 SCFM |
| Liquid Flow Range | 3.45 to 34.5 GPM, 0.064 to 0.64 GPM, 0.226 to 2.26 GPM, 0.52 to 5.2 GPM, 1.26 to 12.6 GPM, 3.4 to 34 GPM, 13.2 to 132 GPM, Not Applicable |
| Process Connection Size | 1", 1/2", 1 1/2", 2" |
| Max Operating Pressure | 250 psi, 300 psi, 150 psi, 125 psi |
| Category | Meter |
| Accuracy | ±2% |
| Process Connection Type | NPT Female |
| Wetted Materials | 316L SS, Glass, Polycarbonate, EPR |
| Max Process Temperature | 93 °C (200 °F) |
| Scale | Direct Read |
| Valve Included | No |
