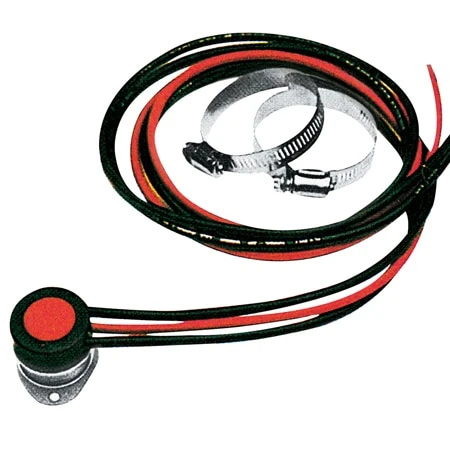

Heavy Duty Non-Indicating Fixed Temperature Switch

Original price was: $57.32.Current price is: $40.12.

Low Cost
Heavy Duty Switch
Only 30 mm (1.2″) Tall

Open Setpoint

Closed Setpoint

Clear

SKU: CCD101N-060 Categories: Control & Monitoring, Process Switches, Temperature Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Applications
The CCD Temperature Controller is used as a remote control thermostat for individual circuits requiring a weatherproof device.

The OMEGALUX™ CCD100N SPST Thermostat uses a temperature-sensitive bi-metal disc in an epoxy-sealed housing. Upon reaching the non-adjustable calibrated setpoint, the disc activates a plunger, causing the heavy duty switch contacts to open.
The CCD100N is normally used as an across-the-line switch, but may be used to operate contactor coils and other similar devices.

The CCD101N is an SPDT Thermostat with the same features as the CCD100N, except that it has an additional pole which can be used to operate external alarm devices or as a limit controller in conjunction with other CCD Series thermostats.

Open Setpoint	60 ±5, 50 ±5, 75 ±5, 105 ±5, 200 ±5
Closed Setpoint	45 ±5, 35 ±5, 60 ±5, 90 ±5, 185 ±5
Switch Type	Fixed Temperature Switch
Contact	25 A SPDT
Supply Voltage	277 V
Sensor Material	304 Stainless Steel
Minimum Temperature	-40°C (-40°F)
Maximum Temperature	105°C (220°F)
