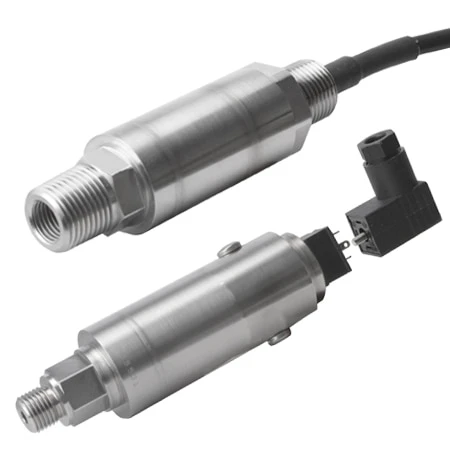

Heavy Duty Pressure Transducers With Sealed SS Construction

Original price was: $321.00.Current price is: $95.99.

Rugged Thick Film Sensing Element
All Stainless Steel Construction
Sealed SS Case for Harsh Environments

Pressure Range

Pressure Type

Output Signal

Electrical output

Pressure Port Size

Pressure Port Type

Connection/Termination

Operating Temperature Range

Additional Features

Clear

SKU: PX51C0-3KA5V Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA’s PX51 Series consists of high-accuracy, low-cost pressure transmitters. Their sealed, all stainless steel construction makes them suitable for the harshest environments. They are available in gage, absolute, or sealed gage models. Ten feet of PVC insulated shielded cable is standard, or a twist-lock style connector is also available. A wide selection of amplified voltage and current outputs makes the PX51 a truly versatile family of industrial transmitters.

Consult sales for units available with Inconel construction.

SPECIFICATIONS
Output/Excitation Voltages
    4 to 20 mA or 0 to 5 Vdc Outputs: 10 to 32 Vdc max
    0 to 10 Vdc Outputs: 16 to 32 Vdc max
Accuracy (Combined Linearity, Hysteresis and Repeatability): ±0.25% FS
Minimum Resistance Between Transducer Body and Any Wire: 100 MΩ @ 50 Vdc
With Potentiometers Zero and Span Adjustable: ±10% FS
Without Potentiometers: Zero Set ±5.0% max, Span Set ±1.0% max
Compensated Temperature Range: 16 to 71°C (60 to 160°F)
Zero Shift: 0.005%FS/°F
Span Shift: 0.003% Reading/°F
Operating Temperature: -40 to 104°C (-40 to 220°F)
Wetted Material: 17-4 Stainless Steel
EMC Compliant: Up to 30 m (98.4′) of cable
    EN 61326-1:2006
    EN 61326-2-3:2006 Industrial levels
Electrical Connection (for PTIH-10-6P twist-lock connector): PT06F10-6S (sold separately)

Pressure Range	0 to 3,000 psi, 0 to 10 psi, 0 to 15 psi, 0 to 20 psi, 0 to 25 psi, 0 to 30 psi, 0 to 50 psi, 0 to 75 psi, 0 to 100 psi, 0 to 150 psi, 0 to 1500 psi, 0 to 1000 psi, 0 to 200 psi, 0 to 250 psi, 0 to 2500 psi, 0 to 2,000 psi, 0 to 300 psi, 0 to 3500 psi, 0 to 500 psi, 0 to 5000 psi, 0 to 750 psi, 0 to 7,500 psi, 0 to 10000 psi, 0 to 15,000 psi, 0 to 20,000 psi, 0 to 30,000 psi, 0 to 60 bar, 0 to 100 bar, 0 to 160 bar
Pressure Type	Absolute, Gauge, Sealed Gauge
Output Signal	Voltage, Current, Digital
Electrical output	0 to 5 Vdc, 0 to 10 Vdc, 4 to 20 mA, USB
Pressure Port Size	1/4", 1/2×1/4"
Pressure Port Type	NPT Male, NPT Female, High Pressure F-250-C, NPT MxF, BSPP Male
Connection/Termination	Cable, MIL-26482-I 10-6P, Mini DIN 43650 C, M12, Submersible Cable
Operating Temperature Range	-40 to 104 °C (-40 to 220 °F), -40 to 75 °C (-40 to 167 °F), -40 to 85 °C (-40 to 185 °F)
Additional Features	Not Applicable, No Potentiometer
Accuracy Class	0.1% to 0.25%
Accuracy Value(compensated range)	±0.25%
