Heavy Duty T-Handle Penetration Thermocouple Probe

Original price was: $157.89.Current price is: $99.99.

Rugged 304SS Design
Choice of K or E Thermocouple Types
T Handle Design Assists Insertion
Pointed Tips without Threads or with Threads to Overcome Penetration Resistantance

Thermocouple Type

Process Temperature Max

Additional Feature

Process Temperature Range

Clear

SKU: 88311E Categories: Handheld Probes, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

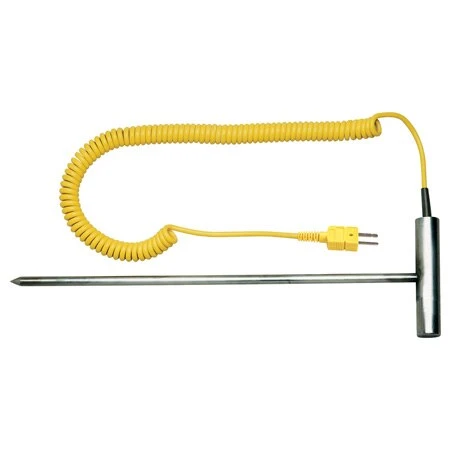

Penetration Probes with new “T”-style 304 stainless steel handle is ideal for industry use or frozen food applications. The probe’s 304SS thick wall tube ensures strong and rigid performance. Each probe comes with .3 m (1′) of RSC cable that stretches to 1.5 m (5′) and a male miniature connector. The probe features a 6.4 mm (0.25″) dia., with a 250 mm (10″) insertion length from the tip to handle. The handle is 75 mm (3″) in length.

Maximum temp rating: 480°C (900°F) for type K, 425°C (800°F) for type E.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	E, K
Probe Diameter	0.250 in
Termination Connection Type	Mini Male connector
Cable Length	60 in
Wire Gauge	28 AWG
Cable Insulation	TPE (Thermo Plastic Elastomer)
Probe Length	10 in
Sheath Housing Material	Stainless Steel
Junction Type	Grounded
Process Temperature Max	480, 425
Accuracy	None
Sensor Application	Penetration Probe
Process Temperature Min	0
Process Temperature Unit	°C
Category	Thermocouple
Additional Feature	None, 1/4-20 Threaded tip
Process Temperature Range	0 to 480°C (32 to 900°F), 0 to 425°C (32 to 800°F)
Color Code Standard	ANSI (Standard)
