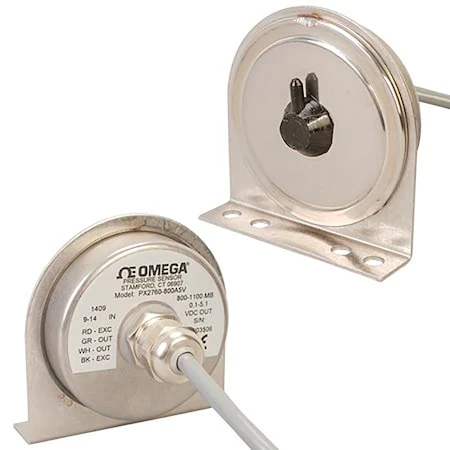

High Accuracy, Barometric Pressure Transducers

Original price was: $344.00.Current price is: $99.99.

Economical Electric Barometer
Rugged Capacitive Design
Excellent Long Term Stability
Fast Response Time

Pressure Range

Pressure Type

Clear

SKU: PX2760-800A5V Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The PX276 is a rugged duct pressure transmitter that offers up to 3 field-selectable ranges in one unit. The PX276 incorporates a NEMA 4 (IP65) enclosure and a static pressure probe in one unit for ease of installation and accurate static duct pressure readings.

SPECIFICATIONS
Excitation: 12 to 40 Vdc
Output: 4 to 20 mA (2 wire)
Accuracy: ±1.0% FS
Operating Temperature: -18 to 80°C (0 to 175°F)
Compensated Temperature: -4 to 65°C (25 to 150°F)
Thermal Effects: 0.02%URL/°C (±0.0125% URL/°F)
Proof Pressure: 10 psi
Media Compatibility: Clean, dry air or inert gas
Termination: Screw terminal block
Enclosure: Enamel-coated, 18 GA steel enclosure with 6061T aluminum probe; NEMA 4 (IP65) rating
Weight: 454 g (1.0 lb)

Pressure Range	800 to 1,100 mbar, 0 to 20 psi, 600 to 1,060 mbar
Pressure Type	Barometric, Absolute
Accuracy Class	0.1% to 0.25%
Accuracy Value(compensated range)	±0.25%
Output Signal	Voltage
Electrical output	0.1 to 5.1 Vdc
Pressure Port Size	1/8"
Pressure Port Type	Barbed Fitting
Connection/Termination	Cable
Operating Temperature Range	-20 to 80 °C (-4 to 176 °F)
