Sale!

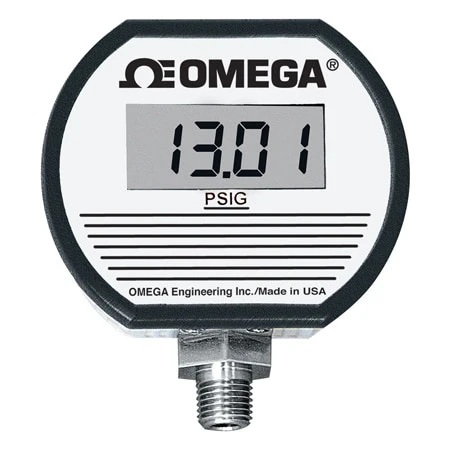

High Accuracy, Digital Pressure Gauge With NIST Certification

Original price was: $348.00.Current price is: $95.99.

NIST Certification Included
High Accuracy +/- 0.10% Test Gauge
316 Stainless Steel Wetted Parts
Easy-to-Read 3 1/2 Digit LCD Display

Pressure Range Max

Pressure Range

Power Source

Number of Digits

Electrical Output

Output Signal

Clear

SKU: DPG1001B-100G Categories: Digital Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The DPG1001 series is a versatile family of industrial pressure gauges. All DPG1001 models feature a large 13 mm H (1/2″) digital display in a rugged, splashproof extruded aluminum case.

A 1/4-18 NPT 316 stainless steel fitting is standard for the pressure connection. Media compatibility includes any liquids or gases compatible with 316 stainless steel.

The DPG1001 features a wide operating temperature range of -20 to 85°C (-4 to 185°F). Many different standard pressure ranges are available. The DPG1001 series also features ±0.10% accuracy, 2X overpressure and 4X burst specifications.

Examples of pricing for popular models is referenced in the “To Order” box. Use the “Part Number Builder” below to get pricing for all available models.

Pressure Range Max	100, 15, 1000, 500, 60, 5, 2000, 30, 5000
Pressure Range	0 to 100 psi, 0 to 15 psi, 0 to 1,000 psi, 0 to 500 psi, 0 to 60 psi, 0 to 5 psi, 0 to 2,000 psi, 0 to 30 psi, 0 to 5,000 psi
Power Source	Battery Powered, AC/DC Powered, Loop Powered
Number of Digits	3.5, 4
Electrical Output	Not Applicable, 4 to 20 mA
Output Signal	Not Applicable, Current
Pressure Range Units	psi
Pressure Range Min	0
Pressure Type	Gauge
Pressure Port Type	NPT Male
Pressure Port Size	1/4"
Accuracy Value	±0.10%
Accuracy Class	0.1% to 0.25%
