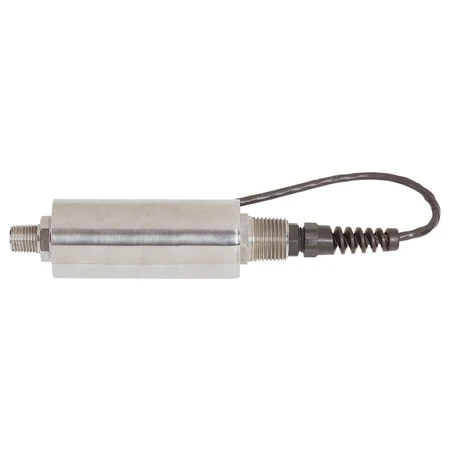

High Accuracy, Hermetically Sealed Pressure Transducers

Original price was: $333.00.Current price is: $96.99.

0.05% Linearity
5-Point NIST Traceable Calibration Provided
All Stainless Steel Construction
Hermetically Sealed Design for Harsh Environments

Pressure Range

Pressure Type

Accuracy Value(compensated range)

Output Signal

Electrical output

Pressure Port Size

Pressure Port Type

Connection/Termination

Operating Temperature Range

Additional Features

Clear

SKU: PX01C0-020AI Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Description

OMEGA’s PX01 Series is a high accuracy, amplified voltage output, industrial pressure transducer. All stainless steel construction and a hermetically sealed case makes the PX01 suitable for harsh industrial environments. It is a true high accuracy industrial device. A broad temperature compensated range of 16 to 71°C (60-160°F) and excellent temperature compensation make this transducer very stable with fluctuating temperatures. The PX01 is available in gage, absolute or sealed models as well as PSI or metric ranges. NPT and 7/16-20 O-ring seal fittings are available for industrial and Hydraulic applications.

Consult sales for units available with Inconel construction.

Pressure Range	0 to 20 psi, 0 to 5 psi, 0 to 15 psi, 0 to 25 psi, 0 to 50 psi, 0 to 100 psi, 0 to 150 psi, 0 to 1500 psi, 0 to 1000 psi, 0 to 200 psi, 0 to 250 psi, 0 to 300 psi, 0 to 3500 psi, 0 to 500 psi, 0 to 5000 psi, 0 to 7,500 psi, 0 to 2 psi, 0 to 10 psi, 0 to 75 psi, 0 to 10000 psi, 0 to 2,000 psi, 0 to 3,000 psi, 0 to 750 psi, 0 to 2500 psi, 0 to 700 psi, 0 to 6,000 psi, 0 to 15,000 psi, 0 to 20,000 psi, 0 to 30,000 psi, 0 to 10 bar, 0 to 100 bar, 0 to 400 bar, 0 to 40 bar, 0 to 16 bar, 0 to 25 bar, 0 to 160 mbar, 0 to 250 bar, 0 to 400 mbar, 0 to 2.5 bar
Pressure Type	Absolute, Gauge, Sealed Gauge
Accuracy Value(compensated range)	±0.09%, ±0.19%
Output Signal	Current, Voltage, Ratiometric mV/V
Electrical output	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc, 3 mV/V
Pressure Port Size	1/4", 7/16"
Pressure Port Type	NPT Male, NPT Female, UNF Male, UNF Female, High Pressure F-250-C, BSPP Male, BSPP Female
Connection/Termination	Cable, MIL-26482-I 10-6P, Conduit, Mini DIN 43650 C
Operating Temperature Range	-46 to 121 °C (-50 to 250 °F), -73 to 163 °C (-100 to 325 °F)
Additional Features	Not Applicable, Cleaned for oxygen service, Lightening Protected Amplifier Box, psi
Accuracy Class	< 0.1%
