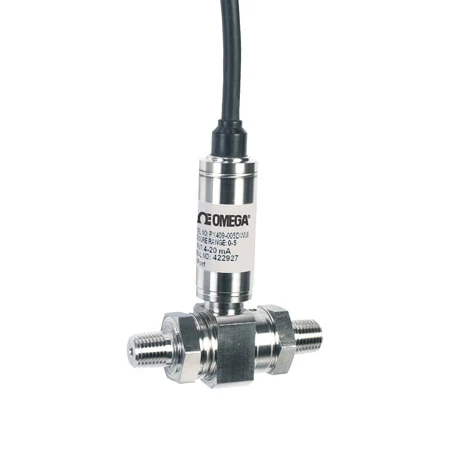

High Accuracy Oil Filled Wet/Dry And Wet/Wet Differential Pressure Transducers

Original price was: $312.00.Current price is: $95.99.

FAST DELIVERY!
5-Point NIST Traceable Calibration
Precision Micro-Machined Silicon Core

Pressure Range

Accuracy Value(compensated range)

Output Signal

Electrical output

Pressure Port Type

Connection/Termination

Operating Temperature Range

Additional Features

Clear

SKU: PX429-2.5DWU5V Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Get all the great performance characteristics of the Micro-Machined Silicon Transducers in these wet/wet differential pressure models. These rugged stainless steel transducers are ideal for tough industrial automotive, or aerospace applications. They can be used in test benches, fitler monitoring, hydraulic, flow, or water/wastewater applications, as well as factory or pneumatic air, pitot tubes, air speed and other industrial or aerospace applications. The solid state silicon core and avaliable all stainless steel wetted parts will provide long, reliable service life with excellent long term stability.

Pressure Range	0 to 2.5 psi, -1 to 1 psi, 0 to 1 psi, 0 to 5 psi, 0 to 15 psi, 0 to 30 psi, 0 to 50 psi, 0 to 100 psi, 0 to 1000 psi, 0 to 10 inH2O, 0 to 150 psi, 0 to 250 psi, 0 to 500 psi, 0 to 750 psi, 0 to 1 bar, 0 to 2 bar, 0 to 7 bar, 0 to 10 bar, 0 to 25 mbar, 0 to 35 bar, 0 to 70 bar, 0 to 70 mbar, 0 to 170 mbar, 0 to 17.5 bar, 0 to 350 mbar, 0 to 3.5 bar, 0 to 50 bar
Accuracy Value(compensated range)	±0.08%, ±0.05%, ±0.05% with ±0.03% non-linearity error
Output Signal	Voltage, Digital, Current, Ratiometric mV/V
Electrical output	0 to 5 Vdc, USB, 0 to 10 Vdc, 4 to 20 mA, 10 mV/V
Pressure Port Type	NPT Male, BSPP Male
Connection/Termination	MIL-26482-I 10-6P, Cable, Mini DIN 43650 C, M12
Operating Temperature Range	-45 to 121 °C (-49 to 250 °F), -40 to 85 °C (-40 to 185 °F), -45 to 115 °C (-49 to 240 °F)
Additional Features	Wet/Wet Diff, Not Applicable, 5M Cable, ±0.05% Static Accuracy, ±0.05% with ±0.03% non-linearity error, 10ft Cable, Wet/Wet Diff ±0.05% Static Accuracy, Wet/Wet Diff ±0.05% with ±0.03% non-linearity error, 1/2" Conduit, Wet/Wet Diff 1/2" Conduit, ±0.05% Static Accuracy 1/2" Conduit, 20m Cable
Pressure Type	Differential
Accuracy Class	< 0.1%
Pressure Port Size	1/4"
