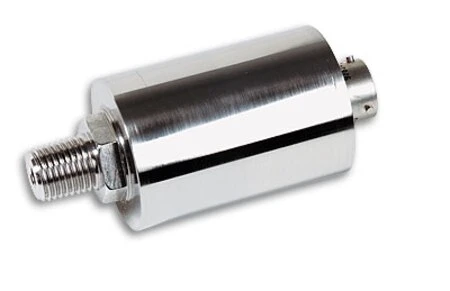

High Accuracy Pressure Transducers With Shunt Calibrator

Original price was: $307.00.Current price is: $96.99.

Rugged Stainless Steel Case Protects Components for Industrial Environments
Stainless Steel Diaphragm Welded For Compatibility with Most Media
Connects to a PT06F10-6S Connector for Easy Field Connections
Uses a Standard 10V dc Regulated Power Supply for Maximum Versatility

Pressure Range

Pressure Type

Output Signal

Electrical output

Pressure Port Type

Operating Temperature Range

Clear

SKU: PX951-100S5V Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SPECIFICATIONS

Excitation: 10 Vdc (15 Vdc max.)

@30 mA

Output: 30 mV ±0.25% @10 Vdc

Sensitivity: 3 mV/V

Input Impedance: 360 Ω min

Output Resistance: 350 Ω ±5Ω

Insulation Resistance: > 5 MΩ

@ 75 Vdc

Accuracy: 0.15%

Hysteresis: ±0.10%

Repeatability: ±0.05%

Zero Balance: ±1.0%

Shunt Cal: 59 KΩ

Operable Temperature Range:

-100 to 325°F (-73 to 163°C)

Compensated Temperature Range:

60 to 160°F (16 to 71°C)

Thermal Zero Effect:

± 0.005% full scale/°F

Thermal Sensitivity Effect:

±0.005% Reading/°F

Proof Pressure: 150% range

Burst Pressure: 300% range

Body Material: 17-4 PH Stainless Steel,

hermetically sealed

Diaphragm Material: 17-4 PH Stainless

Steel

Pressure Port: 1/4 -18 NPT

Male Thread 10 to 1,000 psi,

Female Thread 3,000 to 7500 psi)

Mating Connector PT06F10-6S

(not included)

Pressure Cavity Volume: 0.171 in³

Weight: 10 oz (29 g)

Pressure Range	0 to 100 psi, 0 to 7,500 psi, 0 to 50 psi
Pressure Type	Gauge, Absolute
Output Signal	Voltage, Current
Electrical output	0 to 5 Vdc, 4 to 20 mA
Pressure Port Type	NPT Male, NPT Female
Operating Temperature Range	-45 to 121 °C (-49 to 250 °F), -18 to 85 °C (0 to 185 °F)
Accuracy Class	0.1% to 0.25%
Accuracy Value(compensated range)	±0.15%
Pressure Port Size	1/4"
Connection/Termination	MIL-26482-I 10-6P
Additional Features	Not Applicable
