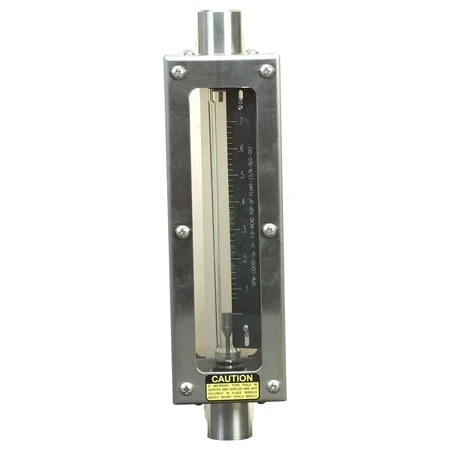

High Accuracy Stainless Steel Variable Area Flow Meters

Original price was: $359.00.Current price is: $99.99.

Heavy Duty 304 SS Frame, End Plates, and Shield Retainers
Full 4.76 mm (3/16′) Thick Polycarbonate Safety Shield
316 SS In-Line (Vertical) Fittings
Detachable, Clear Polycarbonate Scale Plate

Media Type

Gas Flow Range

Liquid Flow Range

Process Connection Size

Max Operating Pressure

Clear

SKU: FL606P Categories: Flow Instruments, Flow Meters, Variable Area Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Variable Area Flow Meter for air and water applications.

SPECIFICATIONS
Accuracy: ±3% of full scale
Repeatability: ±1%
Scale: 127 mm (5′)
Wetted Parts: 316 stainless steel borosilicate glass, EPR O-Rings
Max. Temperature: 93°C (200°F)
Connections: FNPT

Water Models				Air Models			Max Pressure PSIG	Wt. kg (lb)
Model No.	Max GPM	ΔP inH₂O	Ports NPT	Model No.	Max SCFM	Ports NPT	Max Pressure PSIG	Wt. kg (lb)
FL601G	0.74	5	½	FL610G	3.0	½	250	4.5 (10)
FL602G	2.00	40	½	FL611G	8.2	½	250	4.5 (10)
FL603G	5.00	14	1	FL612G	21.5	1	200	4.5 (10)
FL604P	26.00	70	1	FL613P	90.0	1	200	4.5 (10)
FL605P	61.00	40	2	FL614P	250.0	2	125	7.7 (17)
FL606P	116.00	45	2	FL615P	245.0	2	125	7.7 (17)

Media Type	Water, Air
Gas Flow Range	Not Applicable, 0.3 to 3 SCFM, 0.82 to 8.2 SCFM, 2.15 to 21.5 SCFM, 9 to 90 SCFM, 25 to 250 SCFM, 24.5 to 245 SCFM
Liquid Flow Range	11.6 to 116 GPM, 0.074 to 0.74 GPM, 0.2 to 2 GPM, 0.5 to 5 GPM, 2.6 to 26 GPM, 6.1 to 61 GPM, Not Applicable
Process Connection Size	2", 1/2", 1"
Max Operating Pressure	125 psi, 250 psi, 200 psi
Category	Meter
Accuracy	±3%
Process Connection Type	NPT Female
Wetted Materials	316 SS, Glass, EPR
Max Process Temperature	93 °C (200 °F)
Scale	Direct Read
Valve Included	No
