High Performance, Top Mount Accelerometers

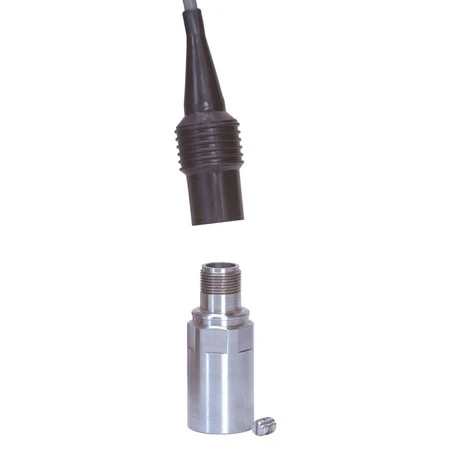

The OMEGAROMETER™ Series accelerometers are designed for industrial vibration measurements. These accelerometers feature a hermetically sealed 316L stainless steel case suitable for harsh environments. The ACC793 is a high performance accelerometer with a top cable exit. FM and CSA intrinsic safety approval is an available option.

SPECIFICATIONS:

DYNAMIC
Sensitivity, ±5%, 25°C (77°F): 100 mV/g
Acceleration Range: 80 g peak
Amplitude Non-Linearity: 1%
Frequency Response:
    ±5%: 1.5 to 5000 Hz
    ±10%: 1.0 to 7000 Hz
    ±3 dB: 0.5 to 15,000 Hz
Resonance Frequency: 25 kHz
Transverse Sensitivity, Max: 5% of axial
Temperature Response: -50°C (-58°F) = -10%; 120°C (248°F) = 5%

ELECTRICAL
Power Requirement:
    Voltage Source: 18 to 30 Vdc
    Current Regulating Diode¹: 2 to 10 mA

Electrical Noise (Equiv. g, Nominal):
Broadband: 2.5 Hz to 25 kHz: 600 µg
Spectral:
   10 Hz: 8 µg/√Hz
   100 Hz: 5 µg/√Hz
   1000 Hz: 5 µg/√Hz
Output Impedance, Max: 100 Ω
Bias Output Voltage: 12 Vdc
Grounding: Isolated case, internally shielded

ENVIRONMENTAL
Temperature Range: -50 to 120°C (-58 to 248°F)
Vibration Limit: 500 g peak
Base Strain Sensitivity, Max: 0.0005 g/microstrain
Sealing: Hermetic to 10^-8 cc/s

PHYSICAL
Weight: 112 g (3.9 oz)
Case Material: 316L SS
Mounting: ¼-28 tapped hole
Output Connector: 2 pin, MIL-C-5015 style
Connections:
    Pin A: Power/signal
    Pin B: Common
Mating Connector: Amphenol 97-3106A-10SL-4S type
Recommended Cabling: ACC-CB7-10
Agency Approvals:
    FM: Class I, II, III, Division I, Groups A, B, C, D, E, F, G; Division II, Groups A, B, C, D, F, G
    CSA: Class I, Division I, Groups A, B, C, D
