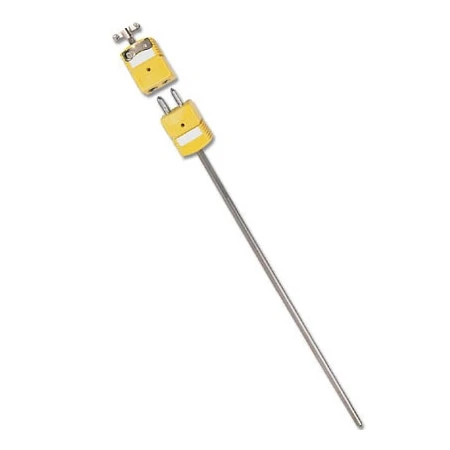

High Temp Low Drift TC Probes With Standard Size Connectors

Original price was: $72.56.Current price is: $50.79.

For Use Up to 1335°C (2440°F)
Excellent Long Term Stability at High Temperatures
Low Thermal Drift
Nickel-Chrome Based Super OMEGACLAD™ Sheathing Provides Excellent High Temperature Performance

Thermocouple Type

Process Temperature Range

Sensor Application

Junction Type

Probe Diameter

Probe Length

Connector Color Code Standard

Additional Feature

Clear

SKU: KQXL-M45U-600 Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Super OMEGACLAD™ XL Probes are an excellent choice for high temperature measurement. They provide very low drift at high temperatures as compared to conventional Inconel and Stainless Steel sheathed probes. They are available in both K and N thermocouple calibrations. Omega offers probes in a variety of styles.
See the Related Links section at the bottom of this page for addtional models.

High Temp Low Drift TC Probes With Standard Size Connectors -Omega Engineering Sales Store

Standard Dimension

Alloy/ANSI Color Code	Sheath Dia. inches	Model Number ANSI Color Code
K CHROMEGA™-ALOMEGA™ XL Sheath	1/16″ 1/8″ 3/16″ 1/4″	KQXL-116[]-[]KQXL-18[]-[*]KQXL-316[]-[*]KQXL-14[]-[**]
N OMEGA-P™-OMEGA-N™ XL Sheath	1/16″ 1/8″ 3/16″ 1/4″	NQXL-116[]-[]NQXL-18[]-[*]NQXL-316[]-[*]NQXL-14[]-[**]

[*]Specify junction type: G (Grounded), E (Exposed), or U (Ungrounded).
[**]Specify Length in inches: 6, 12 ,18, or 24

Read this article if you need help in selecting the thermocouple junction

Want to learn more about thermocouples? Click on the link to go to our thermocouple tutorial page!

View the Thermocouple Accuracy and Color Code charts

Probes up to 48 inches in length are shipped “straight.” Probes over 48 inches are shipped “coiled”. If probe above 48 inches in length must ship straight, please add “-SST” to the end of the part number, and add $75.00 to the probe cost. Additional shipping fees from carrier may also apply for non-standard length packaging.

Thermocouple Type	K, N
Process Temperature Range	0 to 1204°C (32 to 2200°F), 0 to 920°C (32 to 1690°F), 0 to 1038°C (32 to 1900°F), 0 to 1150°C (32 to 2100°F)
Sensor Application	Immersion Probe, Air Probe
Junction Type	Ungrounded, Exposed, Grounded
Probe Diameter	4.50 mm, 0.062 in, 0.250 in, 0.125 in, 0.187 in, 1.50 mm, 3.00 mm, 6.00 mm
Probe Length	600 mm, 12 in, 18 in, 3 in, 36 in, 6 in, 60 in, 72 in, 8 in, 4 in, 48 in, 24 in, 120 in, 300 mm, 450 mm, 200 mm, 150 mm, 900 mm, 1600 mm
Connector Color Code Standard	ANSI (Standard), IEC
Additional Feature	None, ROHS Compliant
Sensor Type	Thermocouple
Sheath Material	Super OMEGACLAD™ XL
Connector Style	Standard Connector
