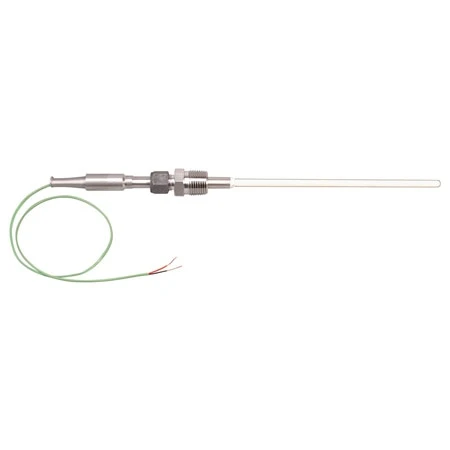

High Temp Thermocouple With Ceramic Sheath And Lead Wires

Original price was: $361.00.Current price is: $95.99.

NHX Standard Ceramic Connector Rated to 650°C (1200°F)
HSTW Standard Connector Liquid Crystal Polymer Rated to 260°C (500°F)
Up to 1650°C (3000°F) Rating
Oxidizing or Reducing Atmospheres

Thermocouple Type

Probe Length

Additional Feature

Termination Connection Type

Wire Gauge

Cable Insulation

Clear

SKU: BAT-TJ36-24-12 Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Type R, S, or B Platinum Thermocouple enclosed in a high purity alumina protection tube. Elements are insulated by a double bore high-purity hardfired alumina insulator.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	B, R, S
Process Temperature Max	1650
Cable Length	40 in
Probe Diameter	0.250 in
Junction Type	Ungrounded
Sheath Material	Ceramic
Sensor Application	Extreme Temperature Probe
Process Temperature Range	0 to 1650°C (32 to 3000°F)
Process Temperature Min	0
Probe Length	12 in, 18 in, 6 in, 8 in, 20 in, 48 in, 24 in, 36 in
Process Temperature Unit	°C
Category	Thermocouple
Additional Feature	none, Stainless steel support tube and optional compression fitting, Wire batch certificate
Termination Connection Type	Stripped Leads, Miniature Connector, Ceramic Miniature Connector, OSTW-M Connector, High Temp Miniature Connector
Wire Gauge	24 AWG, 30 AWG
Cable Insulation	Fiberglass, Fiberglass with Stainless Steel Overbraid, PFA with Stainless Steel Overbraid
Color Code Standard	ANSI (Standard)
