High Temp Thermocouples With Ceramic Tubes And Connectors

Original price was: $356.00.Current price is: $99.99.

NHX Standard Ceramic Connector Rated to 650°C (1200?°F)
HSTW Standard Connector Liquid Crystal Polymer Rated to 260°C (500°F)
Up to 1650°C (3000°F) Rating
Oxidizing or Reducing Atmospheres

Thermocouple Type

Probe Length

Wire Gauge

Connector Style

Additional Feature

Clear

SKU: SAT-QD-24-12-HSTW-M Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

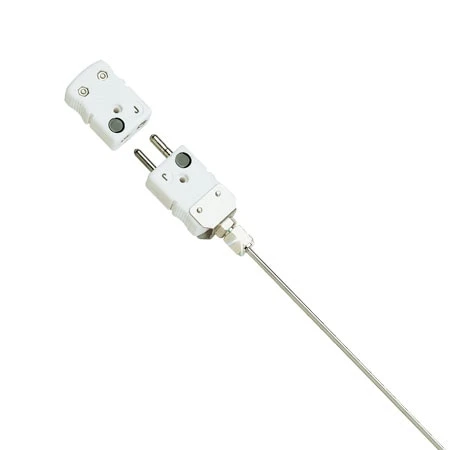

Type R, S, or B Platinum Thermocouple enclosed in a high-purity alumina protection tube. Elements are insulated by a double bore high purity hardfired alumina insulator.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	S, B, R
Probe Length	12 in, 24 in, 8 in, 18 in, 6 in, 48 in
Wire Gauge	24 AWG, 30 AWG
Connector Style	High Temp Standard Connector, Ceramic Standard Connector, Dual High Temp Standard Connector
Additional Feature	None, 4 in support tube length
Sensor Type	Thermocouple
Process Temperature Range	0 to 1650°C (32 to 3000°F)
Sensor Application	Immersion Probe
Sheath Material	Ceramic
Junction Type	Ungrounded
Probe Diameter	0.250 in
Connector Color Code Standard	ANSI (Standard)
