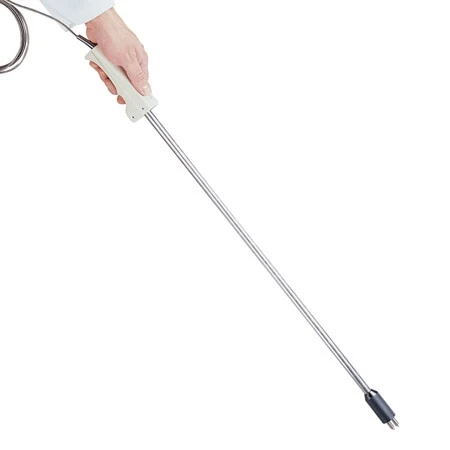

High Temperature Foundry Thermocouple Probes
Original price was: $388.35.$98.99Current price is: $98.99.
- Type K, CHROMEGAâ„¢-ALOMEGAâ„¢ Thermocouple Elements
- Measures Hot Metal Surfaces
- Rated up to (1260°C) 2300°F
- Extra Heavy-Duty Design
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
| Specifically designed for use where surface temperatures reach up to 1260°C (2300°F) and rough handling is routine, OMEGA’s Foundry Probe uses large, heavy-duty tips that can penetrate surface slag to measure the true temperature of the casting. The surface to be measured must be electrically conductive. The thermocouple’s lead wires are 16-gage stranded wire with high temperature insulation and stainless steel overbraiding for added protection. Note: Will not work with analog display systems requiring 10 or 15 ohm input impedance. |   | Specifications Calibration: Type K, CHROMEGAâ„¢-ALOMEGAâ„¢ Maximum Temperature: 1260°C (2300°F) Contacts: 1/4″ pointed Lead Wire: 183 cm (6′), stainless steel overbraiding Probe Length: 762 mm (30″) Handle: Rugged Aluminum, type HDX |
View the Thermocouple Accuracy and Color Code charts
| Termination Connection Type | Spade Lugs, Standard Male Connector |
|---|---|
| Category | Thermocouple |
| Thermocouple Type | K |
| Process Temperature Unit | °C |
| Process Temperature Min | 0 |
| Process Temperature Max | 1200 |
| Process Temperature Range | 0 to 1200°C (32 to 2300°F) |
| Sensor Application | Surface Probes |
| Junction Type | None |
| Probe Diameter | 0.250 in |
| Sheath Housing Material | Stainless Steel |
| Probe Length | 30 in |
| Cable Insulation | PFA |
| Wire Gauge | 22 AWG |
| Cable Length | 40 in |
Be the first to review “High Temperature Foundry Thermocouple Probes”
