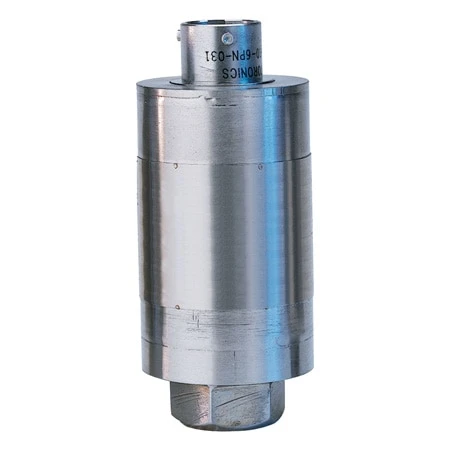

High Temperature, Hermetically Sealed Pressure Transducers

Original price was: $392.00.Current price is: $98.99.

High Compensated Temperature Range
-40 to +168°C (-40 to +335°F)
All Stainless Steel Construction
Hermetically Sealed Models Abailable For Harsh Environments

SKU: PX32B1-1KGV Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA’s PX32 is a rugged, high temperature transducer. Its all stainless steel construction and high-temperature operating range make it ideal for measuring hydraulic pressure on industrial and off-road equipment or in industrial applications in which high temperatures are encountered. The PX32 is available in gage, absolute, or sealed models. An environmentally sealed, twist-lock connector is standard.

SPECIFICATIONS
Excitation: 10 V AC/DC (15 V max)
Output: 3 mV/V (±20%)
Input Resistance: 360 Ohms min
Output Resistance: 350 ±5 Ohms
Zero Balance: ±2% FSO
Accuracy: 0.25% linearity, hysteresis and repeatability combined
Operating Temp Range: -54 to 168 °C (-65 to 335 °F)
Compensated Temp Range: -40 to 168 °C (-40 to 335 °F)
Connection: 1/8-27 NPT Internal Thread

Examples of pricing for popular models is referenced in the ‘To Order’ box. Use the ‘Part Number Builder’ below to get pricing for all available models.

Pressure Range	0 to 1000 psi, 0 to 250 psi, 0 to 750 psi
Pressure Type	Gauge
Accuracy Class	0.1% to 0.25%
Accuracy Value(compensated range)	±0.25%
Output Signal	Ratiometric mV/V
Electrical output	3 mV/V
Pressure Port Size	1/8"
Pressure Port Type	NPT Female
Connection/Termination	MIL-26482-I 10-6P
