High Temperature, High Pressure Transducers
Original price was: $324.00.$95.99Current price is: $95.99.
- Ranges up to 200,000 PSI
- High Operating Temperature 121°C (250°F), up to 218°C(425°F) for mV/V output types
- Hermetically Sealed for Harsh Environments
- Pressure Adaptors Available
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

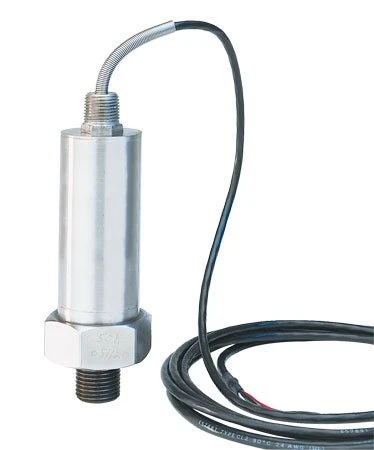

OMEGA’s PX91 Series is a rugged, high pressure transducer for measurement of pressure at high temperatures. It is hermetically sealed, has all stainless steel construction and is designed for use in very high temperature test chambers. The PX91 is available in sealed gauge pressures up to 200,000 psi and operating temperature up to 218°C (425°F). The pressure connection is via a high pressure ferrule connection. FM approved intrinsically safe is standard.
| Pressure Range | 0 to 50,000 psi, 0 to 10000 psi, 0 to 15,000 psi, 0 to 20,000 psi, 0 to 30,000 psi, 0 to 35,000 psi, 0 to 5000 psi, 0 to 60,000 psi, 0 to 70,000 psi, 0 to 45,000 psi, 0 to 100,000 psi, 0 to 120,000 psi, 0 to 150,000 psi, 0 to 80,000 psi |
|---|---|
| Pressure Type | Gauge, Sealed Gauge |
| Accuracy Value(compensated range) | ±0.4%, ±0.5% |
| Output Signal | Current, Voltage, Ratiometric mV/V |
| Electrical output | 4 to 20 mA, 0 to 5 Vdc, 1 mV/V |
| Pressure Port Size | 1/2", 1" |
| Pressure Port Type | High Pressure NPSM, High Pressure NS-2 |
| Connection/Termination | Cable, MIL-26482-I 10-6P, Conduit |
| Operating Temperature Range | -46 to 121 °C (-50 to 250 °F), -56 to 204 °C (-70 to 400 °F) |
| Additional Features | Not Applicable, 30ft Cable, Lightening Protected Amplifier Box, Lightening Protected Amplifier Housing |
| Accuracy Class | > 0.25% |
