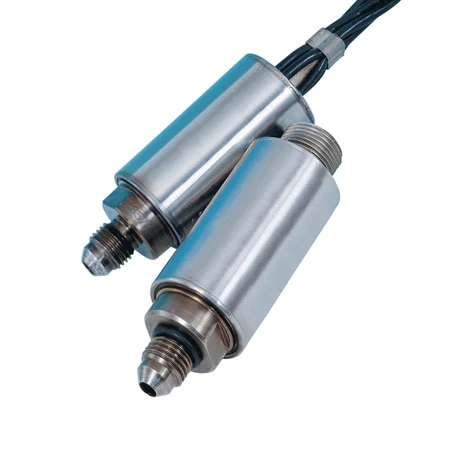

High Temperature Pressure Transducers With AS5202 Port

Original price was: $389.00.Current price is: $96.99.

High Operating Temperature
PX1004: 232°C (450°F)
PX1009: 343°C (650°F)
High Performance ±0.25% BSL Full Scale

Pressure Range

Pressure Type

Connection/Termination

Operating Temperature Range

Additional Features

Clear

SKU: PX1004L1-1KAV Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Description

OMEGA’s PX1004 and PX1009 Sputtered Thin Film Pressure Transducers are designed for high temperature applications. These transducers can operate in temperature ranges from -65°F to +450°F or +650°F. Yet, even in these difficult high temperatures, they provide outstanding accuracy, long-term calibration stability and reliability. Static accuracy is ±0.25%, and thermal zero and sensitivity shifts over their compensated range are less than ±0.01%/°F. OMEGA’s thin film technology makes this premium performance possible. The strain gages are sputter-deposited, forming a molecular bond with the substrate. There is virtually no shift, drift, or creep to cause the transducer’s calibration to change. The all-welded stainless steel pressure cavity and double-isolated case ensures pressure integrity and reliability in these tough environments. These high-temperature transducers are available in many standard ranges from 15 psi to 10,000 psi (specify gage or absolute pressure). A NIST traceable calibration record is available for these units.

For special options consult Sales or Pressure Engineering.

Examples of pricing for popular models is referenced in the “To Order” box. Use the “Part Number Builder” below to get pricing for all available models.

Note: Ultra-High Temperature PX1009 Transducers are built to order. Check with sales for availability.

Pressure Range	0 to 1000 psi, 0 to 15 psi, 0 to 25 psi, 0 to 50 psi, 0 to 100 psi, 0 to 10000 psi, 0 to 250 psi, 0 to 2500 psi, 0 to 2,000 psi, 0 to 500 psi, 0 to 5000 psi, 0 to 60 psi, 0 to 10 bar, 0 to 4 bar
Pressure Type	Absolute, Sealed Gauge
Connection/Termination	MIL-26482-I 10-6P, Cable
Operating Temperature Range	-54 to 232 °C (-65 to 450 °F), -54 to 343 °C (-65 to 650 °F)
Additional Features	Not Applicable, 5 ft Cable, Legacy Part Number, 33 ft Cable
Accuracy Class	0.1% to 0.25%
Accuracy Value(compensated range)	±0.25%
Output Signal	Ratiometric mV/V
Electrical output	3 mV/V
Pressure Port Size	1/4"
Pressure Port Type	AS5205/MS33656-4
