Highly Configurable, High Accuracy, Custom Pressure Transducers
Original price was: $381.00.$95.99Current price is: $95.99.
- High Accuracy, Up to ±0.05%
- Customer Selectable Features
- Over 1,000,000 Feature Combinations
- Premium Temperature Performance
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

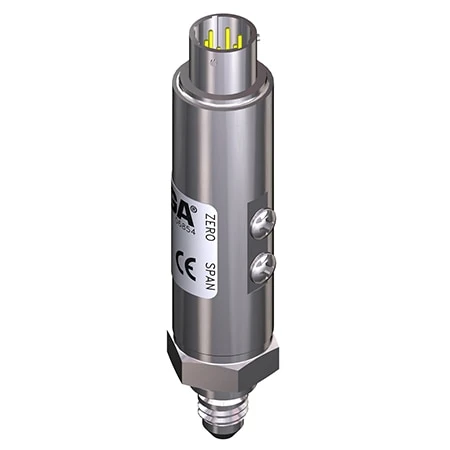

Build/Order/Ship OMEGA’S MM Series Custom Pressure Transducers to meet your pressure sensing requirements
As a lead pressure transducer manufacturer, Omega has developed a new interactive configuration tool that provides a fast and simple way to build custom transducer suitable for application. MM Series custom transducers allow for over 1-million possible combinations of parameters such as pressure type, range, unit, material, output, accuracy, fitting, temperature compensation range, and electrical termination. At the end of the process, the Configurator will provide a part number, price and delivery time for the transducer.
OMEGA’s micro-machined piezoresistive pressure transducers have a proven record in high performance commercial, automotive, test and measurement and aerospace applications. The piezoresistive process uses strain gages molecularly embedded into a highly stable silicon wafer. The silicon wafer is diced into individual die which each contain a full strain gage bridge. The die is mounted in a sealed chamber protected from the environment by glass to metal seals and a pressure sensitive stainless steel diaphragm. A small volume of silicone oil transfers the pressure from the diaphragm to the strain bridge. The construction provides a very rugged transducer with exceptional accuracy, stability and thermal effects.
Some of the most Popular Applications of Pressure Transducers include: Measuring inlet, outlet, or system pressure in engine test setup Measuring pressure drops in a line for preventive maintenance Measuring fluid height or level in tanks Measuring a water pipe leak or gas leak and monitoring gas pressure Maintaining pressure in food and beverage lines Sanitary pressure measurement in the bio or pharmaceutical industry.
Pressure type
(A) Absolute
(G) Gage(SG) Sealed Gage
(CG) Compound Gage
(B) Barometric
(V) Vacuum
(DWU) Differential WW Uni-Directional
(DWB) Differential WW Bi-Directional
(DDU) Differential WD Uni-Directional
(DDB) Differential WD Bi-Directional
Pressure Range
(10W) 10 inH2O
(001) 1 psi
(2.5) 2.5 psi
(005) 5 psi
(015) 15 psi
(030) 30 psi
(050) 50 psi
(100) 100 psi
(150) 150 psi
(250) 250 psi
(500) 500 psi
(600) 600 psi
(750) 750 psi
(1.0K) 1000 psi
(1.5K) 1500 psi
(2.5K) 2500 psi
(3.5K) 3500 psi
(5.0K) 5000 psi
(16) 16-32 inHG ABS
(26) 26-32 inHG ABS
(32) 0-32 inHG ABS
Output
(V) 3mv/V
(V5) 0-5 Vdc
(V1) 10mv/V
(V10) 0-10 Vdc
(C1) 4-20mA
(BIV) ±3mv/V
(BIV1) ±10mv/V
(BIV10) ±0-10 Vdc
(BIC1) 4-20mA (12mA set at zero)
(USBH) USBH (High Speed)
(R4V) RS485 (Voltage)
(R4I) RS485 (Current)
Pressure Unit
(P) PSI
(B) Bar
(H) hPa (mbar)
(K) kPa (W) inH2O (4ËšC)
(M) inHg (0ËšC)
(T) TORR (mm-Hg)
(F) ft-H2O (4ËšC)
Accuracy
(1) 0.03%
(2) 0.05%
(3) 0.08%
(4) 0.20%
(5) 0.40%
Process Fitting
(A) 1/8-27 MNPT
(B) 1/8-27 FNPT
(C) 1/4-18 MNPT
(D) 1/4-18 FNPT
(J) 7/16-20 UNF-M
(K) 7/16-20 UNF-F
(L) 9/16UNF-M
(M) 9/16UNF-F
(MA) G 1/8B-M
(MB) G 1/8B-F
(MC) G 1/4B-M
(MD) G 1/4B-F
(ME) M12X1.5M
(MF) M12X1.5F
Electrical Connection
(0) Cable (ONLY OPTION FOR USBH)
(1) Bendix
(2) Conduit
(3) 6 PIN GMS
(5) M12 (ONLY OPTION FOR RS485)
(6) Mini-DIN
(8) GW Cable
(9) GW Conduit Cable
Temperature Compensation
(T1) 40-140ËšF (4 -60ËšC)
(T2) 0-200ËšF (-18-93ËšC)
(T3) 20-140ËšF (-7-60ËšC)
(T4) -40-220ËšF (-40-105ËšC)
(T5) 20-200ËšF (-6-93ËšC)
(T6) 25-185ËšF (-4 TO 85ËšC)
(T7) 15-220ËšF (-9.4 TO 104ËšC)
(T8) -40-185ËšF (-40-85ËšC)
(T9) 0-185ËšF (-18-85ËšC)
Thermal Accuracy
(A1) ±1.0% Z ±0.7% S
(A2) ±0.8% Z ±0.6% S
(A3) ±0.5% Z ±0.5% S
(A4) ±0.3% Z ±0.3% S
(A7) ±0.9% Z ±0.5% S
(A8) ±0.8% Z ±0.3% S
(A10) ±1.0% Z ±1.0% S
Options
(P) Potentiometers
(S) Shunt Cal
(CE) CE Mark
(MB) Mounting Bracket – Barometric only
| Pressure Range | 0 to 5 psi, 0 to 350 mbar, 0 to 10 inHg, 0 to 260 torr, 0 to 140 inH2O, 0 to 0.35 bar, 0 to 1 bar, 0 to 1000 mbar, 0 to 15 psi, 0 to 2 bar, 0 to 30 psi, 0 to 3.5 bar, 0 to 50 psi, 0 to 7 bar, 0 to 100 psi, 0 to 1000 psi, 0 to 70 bar, 0 to 10 bar, 0 to 150 psi, 0 to 1000 kPa, 0 to 10000 kPa, 0 to 250 psi, 0 to 3500 psi, 0 to 500 psi, 0 to 35 bar, 0 to 5000 psi, 0 to 50 bar, 550 to 1100 mbar, 880 to 1100 mbar, 26 to 32 inHg, 0 to 1100 mbar, 0 to 70 mbar, 0 to 1 psi, 0 to 50 torr, 0 to 30 inH2O, 0 to 7 kPa, 0 to 35 kPa, 0 to 25 mbar, 0 to 2.5 kPa, 0 to 0.361 psi, 0 to 10 inH2O, 0 to 170 mbar, 0 to 2.5 psi, 0 to 70 inH2O, 0 to 5 inHg, 0 to 17 kPa, 0 to 20 torr, 0 to 130 torr, 0 to 200 kPa, 0 to 7000 mbar, 0 to 0.025 bar, 0 to 0.17 bar, 0 to 0.07 bar, 0 to 100 kPa, 0 to 3500 mbar, 0 to 1 ft-H2O, 0 to 700 kPa, 0 to 100 bar, 0 to 1500 psi, 0 to 1750 kPa, 0 to 17.5 bar, 0 to 17500 mbar, 0 to 5.5 ft-H2O, 0 to 175 bar, 0 to 2500 psi, 0 to 175000 mbar, 0 to 245 bar, 0 to 350 bar, 0 to 750 psi, 0 to 30.5 inHg, 0 to 800 torr |
|---|---|
| Pressure Type | Gauge, Absolute, Barometric, Compound Gauge, Differential, Vacuum, Sealed Gauge |
| Accuracy Class | 0.1% to 0.25%, <0.1%, >0.25% |
| Accuracy Value(compensated range) | ±0.20%, ±0.08%, ±0.40%, ±0.05%, ±0.03% |
| Output Signal | Voltage, Current, Digital, Ratiometric mV/V |
| Electrical output | 0 to 5 V, 4 to 20 mA, USB, 0 to 10 V, 10 mV/V, 3 mV/V, -10 to 10 V, -5 to 5 V, RS485 |
| Pressure Port Size | 1/4", 12mm, 1/8", 7/16", 9/16", 1.5", 2" |
| Pressure Port Type | NPT Male, NPT Female, ISO 9974 Male, BSPP Female, AS4395/MS33656, BSPP Male, UNF Female, UNF Male, AS5202/MS33649, Tri-Clamp, ISO 9974 Female |
| Connection/Termination | Cable, Mini DIN 43650 C, M12, MIL-26482-I 10-6P, Conduit, Submersible Cable, Submersible Cable with Conduit, Hermetic Pin Termination |
| Operating Temperature Range | -10 to 93 °C (0 to 200 °F), 4 to 60 °C (40 to 140 °F), -10 to 85 °C (0 to 185 °F), -6 to 60 °C (20 to 140 °F), -40 to 100°C (-40 to 220 °F), -40 to 85 °C (-40 to 185 °F), -6 to 93 °C (20 to 200 °F), -9 to 104 °C (15 to 220 °F), -4 to 85 °C (25 to 185 °F) |
| Additional Features | CE, Max Thermal Shift ±0.5% Z±0.5%S, CE, shunt cal., Max Thermal Shift ±0.3% Z±0.3%S, w/ potentiometer, Max Thermal Shift ±0.5% Z±0.5%S, Max Thermal Shift ±0.5% Z±0.5%S, CE, Max Thermal Shift ±0.3% Z±0.3%S, CE, Max Thermal Shift ±1% Z±1%S, Max Thermal Shift ±0.3% Z±0.3%S, mbar, w/ potentiometer, Max Thermal Shift ±0.3% Z±0.3%S, shunt cal., Max Thermal Shift ±0.3% Z±0.3%S, CE, w/ potentiometer, shunt cal., Max Thermal Shift ±0.3% Z±0.3%S, CE, mounting bracket, Max Thermal Shift ±0.8% Z±0.3%S, mounting bracket, Max Thermal Shift ±0.8% Z±0.3%S, CE, Max Thermal Shift ±0.9% Z±0.6%S, Max Thermal Shift ±0.9% Z±0.6%S, Max Thermal Shift ±0.8% Z±0.3%S, CE, Max Thermal Shift ±0.8% Z±0.3%S, mounting bracket, Max Thermal Shift ±0.9% Z±0.6%S, CE, mounting bracket, w/ potentiometer, Max Thermal Shift ±0.9% Z±0.6%S, CE, w/ potentiometer, Max Thermal Shift ±0.9% Z±0.6%S, w/ potentiometer, Max Thermal Shift ±0.8% Z±0.3%S, CE, shunt cal., Max Thermal Shift ±0.8% Z±0.3%S, shunt cal., Max Thermal Shift ±0.9% Z±0.6%S, CE, shunt cal., Max Thermal Shift ±0.9% Z±0.6%S, CE, mounting bracket, Max Thermal Shift ±0.9% Z±0.6%S, w/ potentiometer, shunt cal., Max Thermal Shift ±0.9% Z±0.6%S, CE, Max Thermal Shift ±1% Z±0.7%S, Max Thermal Shift ±1% Z±0.7%S, Max Thermal Shift ±0.8% Z±0.5%S, CE, w/ potentiometer, Max Thermal Shift ±1% Z±0.7%S, w/ potentiometer, Max Thermal Shift ±1% Z±0.7%S, CE, w/ potentiometer, Max Thermal Shift ±0.3% Z±0.3%S, CE, w/ potentiometer, Max Thermal Shift ±0.5% Z±0.5%S, Max Thermal Shift ±1% Z±1%S, CE, Max Thermal Shift ±0.8% Z±0.5%S, Bidirectional, Max Thermal Shift ±1% Z±0.7%S, Bidirectional, CE, Max Thermal Shift ±1% Z±0.7%S, Bidirectional, CE, Max Thermal Shift ±0.8% Z±0.5%S, Bidirectional, Max Thermal Shift ±0.8% Z±0.5%S, Bidirectional, CE, Max Thermal Shift ±0.3% Z±0.3%S, Bidirectional, CE, Max Thermal Shift ±0.5% Z±0.5%S, Bidirectional, Max Thermal Shift ±0.3% Z±0.3%S, Bidirectional, shunt cal., Max Thermal Shift ±0.5% Z±0.5%S, Bidirectional, Max Thermal Shift ±0.5% Z±0.5%S, Bidirectional, CE, Max Thermal Shift ±1% Z±1%S, CE, shunt cal., Max Thermal Shift ±0.8% Z±0.5%S, Wet/Wet Bidirectional Diff, CE, Max Thermal Shift ±0.8% Z±0.5%S, Wet/Wet Bidirectional Diff, CE, Max Thermal Shift ±1% Z±0.7%S, Wet/Wet Bidirectional Diff, Max Thermal Shift ±1% Z±0.7%S, Wet/Wet Bidirectional Diff, Max Thermal Shift ±0.8% Z±0.5%S, Wet/Wet Bidirectional Diff, shunt cal., Max Thermal Shift ±1% Z±0.7%S, Wet/Wet Bidirectional Diff, w/ potentiometer, Max Thermal Shift ±0.8% Z±0.5%S, Wet/Wet Bidirectional Diff, CE, w/ potentiometer, Max Thermal Shift ±0.8% Z±0.5%S, Wet/Wet Bidirectional Diff, CE, Max Thermal Shift ±0.3% Z±0.3%S, Wet/Wet Bidirectional Diff, CE, Max Thermal Shift ±0.5% Z±0.5%S, Wet/Wet Bidirectional Diff, Max Thermal Shift ±0.5% Z±0.5%S, Wet/Wet Bidirectional Diff, Max Thermal Shift ±0.3% Z±0.3%S, Wet/Wet Bidirectional Diff, CE, shunt cal., Max Thermal Shift ±0.5% Z±0.5%S, Wet/Wet Bidirectional Diff, shunt cal., Max Thermal Shift ±0.3% Z±0.3%S, Wet/Wet Bidirectional Diff, w/ potentiometer, Max Thermal Shift ±1% Z±0.7%S, Wet/Wet Bidirectional Diff, CE, Max Thermal Shift ±1% Z±1%S, Wet/Wet Bidirectional Diff, shunt cal., Max Thermal Shift ±0.5% Z±0.5%S, Wet/Wet Diff, CE, Max Thermal Shift ±1% Z±0.7%S, Wet/Wet Diff, CE, Max Thermal Shift ±0.8% Z±0.5%S, Wet/Wet Diff, Max Thermal Shift ±1% Z±0.7%S, Wet/Wet Diff, 10ft Cable, Max Thermal Shift ±1% Z±0.7%S, Wet/Wet Diff, CE, w/ potentiometer, Max Thermal Shift ±0.8% Z±0.5%S, Wet/Wet Diff, w/ potentiometer, shunt cal., Max Thermal Shift ±0.8% Z±0.5%S, Wet/Wet Diff, Max Thermal Shift ±0.8% Z±0.5%S, Wet/Wet Diff, w/ potentiometer, Max Thermal Shift ±1% Z±0.7%S, Wet/Wet Diff, w/ potentiometer, Max Thermal Shift ±0.8% Z±0.5%S, Wet/Wet Diff, CE, Max Thermal Shift ±1% Z±1%S, Wet/Wet Diff, CE, Max Thermal Shift ±0.5% Z±0.5%S, Wet/Wet Diff, CE, w/ potentiometer, Max Thermal Shift ±0.5% Z±0.5%S, Wet/Wet Diff, Max Thermal Shift ±0.5% Z±0.5%S, Wet/Wet Diff, CE, Max Thermal Shift ±0.3% Z±0.3%S, Wet/Wet Diff, CE, shunt cal., Max Thermal Shift ±0.5% Z±0.5%S, Wet/Wet Diff, Max Thermal Shift ±0.3% Z±0.3%S, Wet/Wet Diff, CE, shunt cal., Max Thermal Shift ±0.3% Z±0.3%S, Wet/Wet Diff, 6m Cable, Max Thermal Shift ±0.5% Z±0.5%S, Wet/Wet Diff, CE, w/ potentiometer, Max Thermal Shift ±0.3% Z±0.3%S, Wet/Wet Diff, w/ potentiometer, Max Thermal Shift ±0.3% Z±0.3%S, Wet/Wet Diff, Max Thermal Shift ±1% Z±1%S, Wet/Wet Diff, w/ potentiometer, Max Thermal Shift ±0.5% Z±0.5%S, Wet/Wet Diff, shunt cal., Max Thermal Shift ±0.3% Z±0.3%S, shunt cal., Max Thermal Shift ±0.8% Z±0.5%S, CE, 20ft Cable, Max Thermal Shift ±0.5% Z±0.5%S, 15ft Cable, Max Thermal Shift ±0.5% Z±0.5%S, 30ft Cable, Max Thermal Shift ±0.5% Z±0.5%S, CE, w/ potentiometer, shunt cal., Max Thermal Shift ±0.8% Z±0.5%S, w/ potentiometer, Max Thermal Shift ±0.8% Z±0.5%S, CE, w/ potentiometer, Max Thermal Shift ±0.8% Z±0.5%S, CE, shunt cal., Max Thermal Shift ±0.5% Z±0.5%S, shunt cal., Max Thermal Shift ±0.5% Z±0.5%S, w/ potentiometer, shunt cal., Max Thermal Shift ±1% Z±0.7%S |
