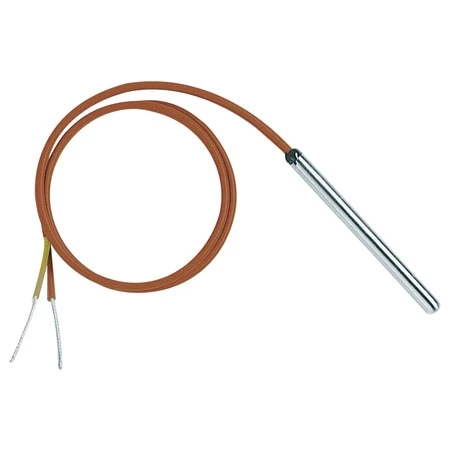

Hollow Tube Style Thermocouple Probes
Original price was: $56.20.$39.34Current price is: $39.34.
- 1m (40′) PFA Insulated Lead Wire Epoxy Potted into a Stainless Steel Sheath
- Probe Rated up to 450°F
- Probe Diameters of 1 /16 ‘, 1 /8 ‘, 3 /16 ‘ and 1 /4 ‘
- J, K, T, E, N Calibrations
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
| Thermocouple Type | K, J, T, E, N |
|---|---|
| Process Temperature Max | 230, 482, 370, 315 |
| Process Temperature Range | 0 to 230°C (32 to 450°F), 0 to 482°C (32 to 900°F), 0 to 370°C (32 to 700°F), 0 to 315°C (32 to 600°F) |
| Junction Type | Ungrounded, Grounded |
| Probe Diameter | 0.187 in, 0.125 in, 1.50 mm, 0.062 in, 0.250 in, 1/4 in |
| Probe Length | 6 in, 2.75 in, 2 in, 3 in, 75 mm, 1.50 in, 2.25 in, 2.5 in, 4 in, 3.5 in, 4.50 in, 3.25 in, 4.25 in, 5.00 in, 10 in |
| Cable Insulation | PFA, PFA with Stainless Steel Overbraid, Fiberglass |
| Wire Gauge | 20 AWG, 24 AWG, 30 AWG, 20 AWG (Stranded) |
| Cable Length | 40 in, 100 in, 120 in, 144 in, 192 in, 1 m |
| Termination Connection Type | Stripped Leads, Miniature Connector, Lead wire |
| Color Code Standard | ANSI (Standard), Immersion Probe |
| Category | Thermocouple |
| Process Temperature Unit | °C |
| Process Temperature Min | 0 |
| Sensor Application | Immersion Probe |
| Sheath Material | 304 Stainless Steel |
