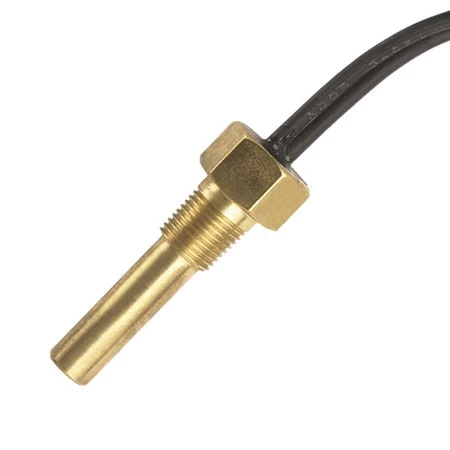

Immersion Snap-Action Bimetallic Temperature Switches

Original price was: $48.84.Current price is: $34.19.

Low Voltage/Low Current Applications
1/4 NPT Mounting Threads
Factory Preset Temperature
Direct Action Contacts/Minimum Hysteresis

Switch Operation

Contact

Clear

SKU: TSW-TT-F3B-90R/WL Categories: Control & Monitoring, Process Switches, Temperature Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA’s TSW-TT Series bi-metal immersion temperature switches are perfect for applications that require an economical solution to simple temperature control. All switches activate with a rise in temperature. The TSW-TT Series offer a wide range of temperature pre-set values to select from.

Specifications
Set Point Range: 4 to 149°C (40 to 300°F)
Set Point Tolerance: ±2.8°C (5°F)
Maximum Temperature: 163°C (325°F)
Current Rating: 3 A @ 240 Vac, 2 A @ 24 Vdc (resistive)
Probe Length: 25.4 mm (1″)
Media Connection: ¼ NPT male
Electrical Connection: 152.4 mm (6″) wire leads
Circuit Form: SPST-NO or SPST-NC
Maximum External Pressure: 5000 psi

Switch Operation	32°C (90°F), 38°C (100°F), 43°C (110°F), 49°C (120°F), 54°C (130°F), 60°C (140°F), 65°C (150°F), 71°C (160°F), 77°C (170°F), 82°C (180°F), 88°C (190°F), 93°C (200°F), 99°C (210°F), 104°C (220°F), 110°C (230°F), 115°C (240°F), 121°C (250°F), 127°C (260°F), 132°C (270°F), 138°C (280°F), 143°C (290°F), 149°C (300°F), 4°C (40°F), 10°C (50°F), 15°C (60°F), 21°C (70°F), 27°C (80°F)
Contact	3 A SPST Normaly Closed, 3 A SPST Normally Open
Switch Type	Fixed Temperature Switch
Probe Length	25.4 mm (1 in)
Probe Diameter	9.5 mm (0.38 in)
Sensor Material	Brass
Maximum Temperature	163°C (325°F)
Additional Features	1/4" NPT, 5000 PSI
