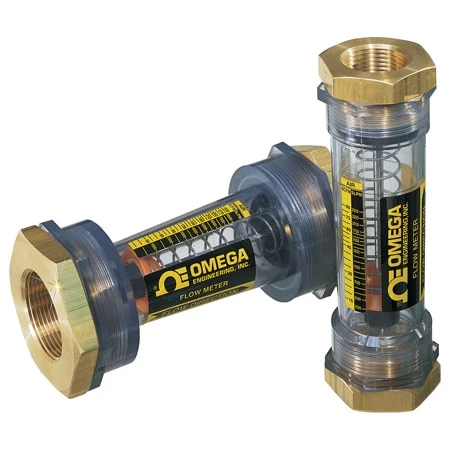

In-line Flow Meters For Use With Water And Air

Original price was: $257.90.Current price is: $96.99.

Direct Reading in GPM, LPM, SCFM, and SLPM
Scales for Air and Water
Fluid is Always in View
Mount in Any Position

Gas Flow Range

Liquid Flow Range

Process Connection Type

Process Connection Size

Wetted Materials

Features

Clear

SKU: FL-505 Categories: Flow Instruments, Flow Meters, Variable Area Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FL-500 Series in-line flow meters feature rugged construction, easy installation and direct reading flow rates for water and air at atmospheric and 90 psi pressures. For added versatility, the FL-500 Series can be ordered with an electric proximity switches (order separately, see the FL-500-R for complete details) to signal specific flow rates. Settings are easily adjustable with a screwdriver.

SPECIFICATIONS
Accuracy: ±5% FS
Construction:
   Flow tube and float: PVC
   Internal Wetted Parts: 316 SS end fittings
   Brass, Female NPT Seals: FKM
Liquid Service: 200 psig @ 21°C (70°F)
Gas Service: 100 psig @ 21°C (70°F)
Maximum Temperature: 66°C (150°F) @ 25 psig
Pressure Drop: 4 psig Full Scale
Dimensions: 177.8 mm (7″) long
   FL-505 thru FL-515: 50.8 (2″) diameter
   FL-530 thru FL-550: 76.2 (3″) diameter

Gas Flow Range	5 to 50 SCFM, 15 to 90 SCFM, 15 to 135 SCFM, 30 to 300 SCFM, 40 to 400 SCFM, 50 to 500 SCFM
Liquid Flow Range	0.5 to 5 GPM, 1 to 10 GPM, 1.5 to 15 GPM, 3 to 30 GPM, 4 to 40 GPM, 5 to 50 GPM
Process Connection Type	NPT Female, BSPT
Process Connection Size	1", 1 1/2"
Wetted Materials	316 SS, PVC, FKM, 316 SS, Polysulfone, FKM
Features	Water Maximum Pressure 200 psi, Water Maximum Pressure 200 psi NIST Calibration
Category	Meter
Media Type	Air, Water
Accuracy	±5%
Max Operating Pressure	100 psi
Max Process Temperature	65 °C (150 °F)
Scale	Direct Read
Valve Included	No
