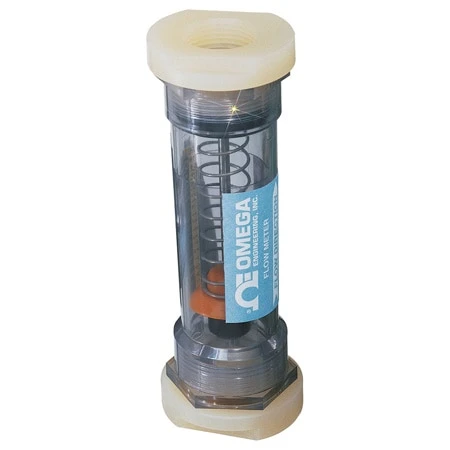

In-line Flowmeters For Ultra-pure Water
Original price was: $391.00.$97.99Current price is: $97.99.
- Fluid Is Always in Sight
- Direct Reading English and Metric Scale Standard
- Electro-Polished Version of Standard 316 Stainless Steel Shaft and Spring Optionally Available
- PVDF End Fittings
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
The FL-500UP is a specialized meter for monitoring the flow rate of ultra-pure water to tools, on deionized water returns, and UPW returns. Also available are accessory switches for signaling specific flowrates. Each switch kit contains all the necessary hardware for quick and trouble-free mounting. Kits include a ring-shaped PTFEcoated ceramic magnet that fits around the float in the flowmeter, and a proximity switch mounted in a rugged housing that easily clamps to the body of the flowmeter. As the changing flow causes the float to move within the tube, the magnet moves with it, and its magnetic field trips the proximity switch at the predetermined flow rate. An adjustment screw allows for easy flow rate adjustment. Add 2 switches to indicate both high and low flow rate limits.
SPECIFICATIONS
Accuracy: ±5% FS
Pressure Drop: 4 psi at full scale flow
Maximum Pressure: 150 psig @ 20°C (68°F)
Maximum Temperature: 65°C (150°F) @ 0 psig
Dimensions: 177.8 mm (7″) long
   FL-505 through FL-515: 50.8 mm (2″) Dia.
   FL-530 through FL-550: 76.2 mm (3″) Dia.
Switch Ratings: 8 W, 100 Vdc/120 Vac (at 25°C (77°F))
| Liquid Flow Range | 0.5 to 5 GPM, 1 to 10 GPM, 1.5 to 15 GPM, 2 to 20 GPM, 3 to 30 GPM, 4 to 40 GPM, 5 to 50 GPM |
|---|---|
| Process Connection Size | 1", 1 1/2" |
| Category | Meter |
| Media Type | Water |
| Accuracy | ±5% |
| Process Connection Type | NPT Female |
| Wetted Materials | Polysulfone, Perfluoroelastomer, PVDF, 316 SS |
| Max Operating Pressure | 150 psi |
| Max Process Temperature | 65 °C (150 °F) |
| Scale | Direct Read |
| Valve Included | No |
| Features | Switch Kits Available |
