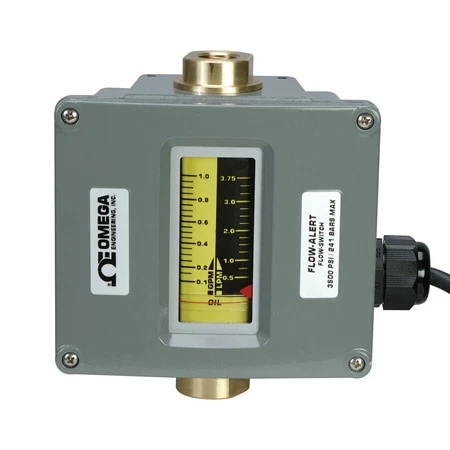

In-line Variable Area Flow Meter With Limit Switches

Original price was: $322.00.Current price is: $96.99.

±2% Full Scale Accuracy
±1% Repeatability
Direct Readings for Oil, Water or Air
Built-in Limit Switch for Alarm and Control

Media Type

Gas Flow Range

Liquid Flow Range

Process Connection Size

Wetted Materials

Max Operating Pressure

Features

Clear

SKU: FL-6102B Categories: Flow Instruments, Flow Meters, Variable Area Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA ® in-line flowmeters offer high accuracy flow rate indication for oil, water or air and the ability to either control the flowrate or alarm on high or low flowrates. These units feature an SPDT switch which can be triggered at any point along the flow range.

SPECIFICATIONS
Switch: Micro SPDT 10 A @ 250 Vac
Cable: 0.8 m (34″) cable
Max Temperature and Pressure:
   Water/Oil: 116°C (240°F)/3500 psi
   Air: 116°C (240°F)/1000 psi
Dimensions (D x W x Lay Length):
   1/2 NPT: 102 x 72 x 168 mm (4 x 2.82 x 6.6″)
   3/4 NPT: 83 x 184 x 182 mm (3.3 x 7.3″ x 7.2″)
Wetted Parts:
   Water Meters: C360 brass body, piston, and cone; T302 SS spring; ceramic magnet
   Oil Meters: 2024-T351 anodized aluminum body, piston, and cone; T302 SS spring; ceramic magnet
   Air Meters: 2024-T351 anodized aluminum body, piston, and cone; T302 SS spring; ceramic magnet
Enclosure: NEMA 12 (IP65)
Relay: 10 A @ 250 Vac max; 0.5 A @ 125 Vdc max

Media Type	Oil, Water, Air
Gas Flow Range	Not Applicable, 3 to 25 SCFM, 25 to 250 SCFM, 5 to 50 SCFM
Liquid Flow Range	0.2 to 2 GPM, 0.1 to 1 GPM, 0.5 to 5 GPM, 1 to 15 GPM, Not Applicable, 1 to 10 GPM, 2 to 20 GPM, 3 to 30 GPM
Process Connection Size	1/2", 3/4"
Wetted Materials	Aluminum, T302 SS, Ceramic, Brass, T302 SS, Ceramic
Max Operating Pressure	3,500 psi, 1,000 psi
Features	1 Limit Switch, 2 Limit Switches
Category	Meter
Accuracy	±2%
Process Connection Type	NPT Female
Max Process Temperature	116 °C (240 °F)
Scale	Direct Read
Valve Included	No
