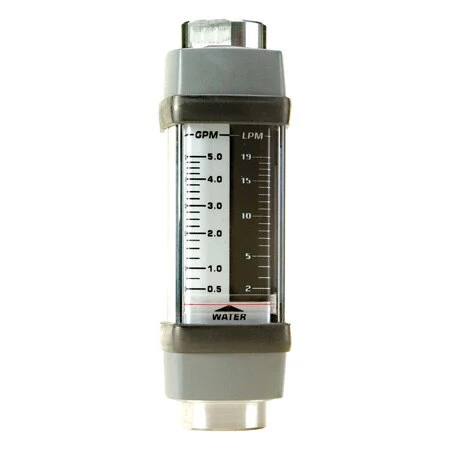

In-line Variable Area Flow Meters
Original price was: $310.00.$98.99Current price is: $98.99.
- ±2% Full Scale Accuracy
- ±1% Repeatability
- Direct Reading Scale for Water
- For Corrosive Fluids
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
OMEGAâ„¢ FL-6400A in-line flowmeters are designed for use with many caustic or corrosive fluids. These meters feature stainless steel construction, and because of the unique construction design, they can be mounted in any position. The FL-6400A flowmeters have direct-reading scales for water on the metering tube, and, due to the sharp-edged orifice float, variances in viscosity have only a minimal effect. FL-6400A flowmeters feature a unique spring-bound design flow rate indicator, which can be used with both clear and opaque liquids for maximum versatility.
SPECIFICATIONS
Accuracy: ±2% FS
Repeatability: ±1%
Connections: 1/2 FNPT
Dimensions: 61.0 x 53.6 mm (2.4 x 2.11″) for 116°C (240°F) units
Length: 168 mm (6.6″) for all units
Max Pressure: 413.7 bar (6000 psig)
Max Temperature: 116°C (240°F)
Shipping Weight: 1.34 kg (2.95 lb)
Metering Tube: 316 SS
Float: 316 SS
Spring: 316 SS
Seals: FKM
Magnet: Polyphenylene sulfide/ceramic
| Liquid Flow Range | 1 to 10 GPM, 0.2 to 2 GPM, 0.5 to 5 GPM, 1.5 to 15 GPM |
|---|---|
| Category | Meter |
| Media Type | Water |
| Accuracy | ±2% |
| Process Connection Type | NPT Female |
| Process Connection Size | 1/2" |
| Wetted Materials | 316 SS, Polyphenylene Sulfied, Ceramic |
| Max Operating Pressure | 6,000 psi |
| Max Process Temperature | 116 °C (240 °F) |
| Scale | Direct Read |
| Valve Included | No |
| Features | Dual Scale GPM/LPM |
