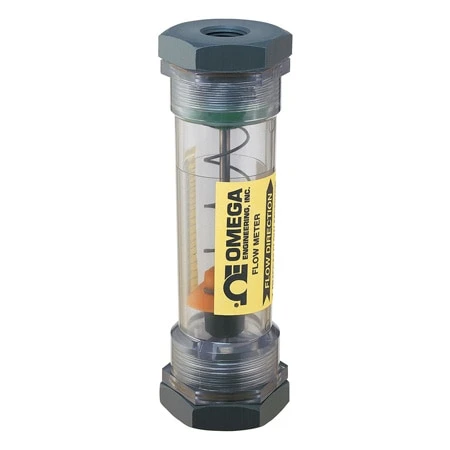

In-Line Variable Area Flow Meters For Water & Wastewater

Original price was: $360.05.Current price is: $99.99.

Direct Flow Indication
PVC Body and End Fittings
Titanium Shaft and Spring
Easily Mounted in Any Pipe Orientation Typical Applications:

Liquid Flow Range

Process Connection Size

Clear

SKU: FL-505WW Categories: Flow Instruments, Flow Meters, Variable Area Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FL-500WW Series provides flowrate indication for 1 to 5% dilute aqueous chemical solutions used in the treatment of water and wastewater.
Specifications:

Model No.	End Fittings	Dual Scales		Diameter:	Length:
Model No.	End Fittings	GPM	LPM	Diameter:	Length:
FL-505WW	1 FNPT	0.5 to 5	2 to 20	50.8 mm (2″)	177.8 mm (7″)
FL-510WW	1 FNPT	1 to 10	4 to 38
FL-515WW	1 FNPT	1.5 to 15	6 to 55
FL-520WW	1½ FNPT	2 to 20	8 to 75	76.2 mm (3″)	177.8 mm (7″)
FL-530WW	1½ FNPT	3 to 30	11 to 110
FL-540WW	1½ FNPT	4 to 40	15 to 150
FL-550WW	1½ FNPT	5 to 50	20 to 200

Liquid Flow Range	0.5 to 5 GPM, 1 to 10 GPM, 1.5 to 15 GPM, 2 to 20 GPM, 3 to 30 GPM, 4 to 40 GPM, 5 to 50 GPM
Process Connection Size	1", 1 1/2"
Category	Meter
Media Type	Water
Accuracy	±5%
Process Connection Type	NPT Female
Wetted Materials	PVC, Titanium
Max Operating Pressure	200 psi
Max Process Temperature	65 °C (150 °F)
Scale	Direct Read
Valve Included	No
