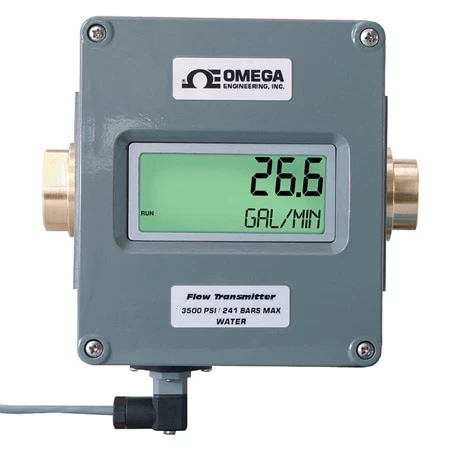

Indicating Flow Meter With Analog Outputs
Original price was: $355.00.$96.99Current price is: $96.99.
- 2% FS Accuracy
- No Straight Pipe Run Required
- Mounts in Any Position
- 4 to 20 mA, 0 to 5 Vdc and 0 to 10 Vdc Outputs Standard
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
Rugged In-Line Flow Sensors
Available in 1/2″, 3/4″, and 1-1/4″ sizes with anodized aluminum, brass and/or stainless steel flow cartridges. Comes with 4.5 m (15′) of stripped end integral cable. In the field, integral cable can be extended up to 300 m (1000′) with shielded copper cable. Units are securely protected in a sturdy cast aluminum enclosure, and are easy to install and mount in any position, vertical or horizontal. Capable of monitoring fluids to 150 GPM or pneumatic lines to 1000 SCFM.
SPECIFICATIONS
Temperature Range: -29 to 116°C (-20 to 240°F)
Maximum Pressure: 3500 psig (liquids); 1000 psig (gases)
Power Requirement:
0 to 5 Vdc Output: 10 to 30 Vdc @ 0.75W max
0 to 10 Vdc Output: 12 to 30 Vdc @ 0.75W max
4 to 20 mA Output: Loop-powered, 30 Vdc max
Power Consumption: 25 mA max
Circuit Protection: Reverse polarity and current limit
Repeatability: ±0.5%
Non-linearity: ±0.05%
Isolation: Inherently isolated from the piping system
Display: Fixed or toggle modes of operation for rate and totalizer display. 8-digit, 0.70″ high numeric display for rate and total 8-digit 0.35″ high alphanumeric display for units and setup.
Response Time: 1.0 sec
Temperature Drift: 0.05% of span per °C max
Analog Outputs: 4 to 20 mA into 1k? max 0 to 5 Vdc into 10 k? min 0 to 10 Vdc into 10 k? min
User Connections: 15-foot pig-tail (standard)
Transmission Distance: 4 to 20 mA limited by cable resistance 0 to 5 Vdc 300 m (1000′) maximum 0 to 10 Vdc 300 m (1000′) maximum
ENCLOSURE
Material: Anodized and epoxy powder-coated aluminum with polycarbonate lens
Seals: Silicone gasket between enclosure and lens/cover. FKM O-rings between enclosure and flow meter body.
Connection: 4-pin connection (standard)
Fasteners: T303 SS
Rating: NEMA 12 & 13 (IP52/54)
Materials: 2024 – T351 anodized aluminum body, piston and cone C360 Brass body, piston and cone
PETROLEUM (OIL) COMMON PARTS
Spider Plate: T316 SS
Spring: T302 SS
Fasteners: T303 SS
Pressure Seals: FKM
Lens: Polycarbonate
Retaining Ring: SAE 1070/1090 carbon steel
Retaining Spring: SAE 1070/1090 carbon steel
Internal Magnet: PPS/ceramic
Enclosure Seal: Silicone gasket
WATER-BASES, WATER, AIR COMMON PARTS
Spider Plate: T316 SS
Spring: T302 SS
Fasteners: T303 SS
Pressure Seals: FKM
Lens: Polycarbonate
Retaining Ring: T316 SS
Retaining Spring: ST316 SS
Internal Magnet: PPS/ceramic
Enclosure Seal: Silicone gasket
| Media Type | Water, Oil, Air |
|---|---|
| Gas Flow Range | Not Applicable, 2 to 25 SCFM, 5 to 50 SCFM, 10 to 100 SCFM, 15 to 150 SCFM, 25 to 250 SCFM, 100 to 1,000 SCFM, 25 to to SCFM, 25 to 400 SCFM, 50 to 600 SCFM |
| Liquid Flow Range | 3 to 30 GPM, 0.2 to 2 GPM, 0.5 to 5 GPM, 1 to 15 GPM, Not Applicable, 2 to 20 GPM, 4 to 40 GPM, 5 to 50 GPM, 10 to 100 GPM, 15 to 150 GPM, 10 to 75 GPM, 10 to 150 GPM |
| Process Connection Type | NPT Female, BSPP |
| Process Connection Size | 3/4", 1/2", 1", 1 1/4" |
| Wetted Materials | Aluminum, T302 SS, Carbon Steel, Silicone, PPS, Ceramic, FKM, Brass, T302 SS, Carbon Steel, Silicone, PPS, Ceramic, FKM |
| Max Operating Pressure | 3,500 psi, 1,000 psi |
| Category | Meter |
| Accuracy | ±2% |
| Max Process Temperature | 116 °C (240 °F) |
| Scale | Digital |
| Valve Included | No |
