Sale!

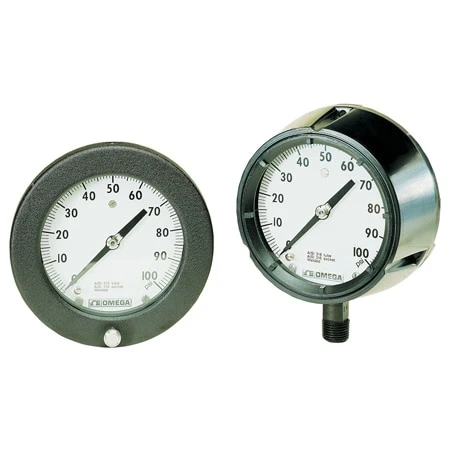

Industrial Pressure Gauges With Temperature Compensation

Original price was: $315.87.Current price is: $95.99.

0.5% FS Accuracy
PGH Gauge Ranges from 15 psi to 20,000 psi
Double-Strength Shatter-Resistant Glass
Heavy Duty 316 SS Wetted Parts

Pressure Type

Pressure Range Units

Pressure Range Min

Pressure Range Max

Accuracy Class

Dial Size

Additional Features

Clear

SKU: PGH-45B-15 Categories: Analog Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SPECIFICATIONS
Dial Arc: 270°
Case: Lower Connection
   PGH: 4½’ dial, lower or back connection; Black Phenol
   PGJ: 4½’ or 6′ dial; back connection; Aluminum case
Ring Material: Polypropylene
Back Cover Material:
   Dry case: Polypropylene
   Liquid filled case: Polycarbonate
   Hermetic case: Polycarbonate
Window: Double-Strength Glass
Bourdon Tube: 316 Stainless Steel
Connection: ½ NPT Male, 316 SS
Mounting: Stem, Flush or Surface
Operating Temperature: 121°C (250°F) Max.

Examples of pricing for popular models is referenced in the ‘To Order’ box.

Pressure Type	Gauge, Vacuum, Compound Gauge
Pressure Range Units	psi, inHg, ftH2O
Pressure Range Min	0, -15
Pressure Range Max	15, 100, 1,000, 10,000, 1,500, 160, 200, 2,000, 20,000, 30, 300, 3,000, -30, 150, 60, 400, 5,000, 600, 800, -34
Accuracy Class	> 0.25%, Good
Dial Size	4.5", 6"
Additional Features	Rear Connection, Phenol case, Silicone Oil Fill, Rear Connection, Phenol case, 0 to 1,000 psi, Rear Connection, Phenol case, NIST Calibration, Bottom mounting, Bottom mounting, Silicone Oil Fill, Bottom mounting, Dual Scale, Bottom mounting, Dual scale, Silicone Oil Fill, NIST Calibration, Rear Connection, Aluminum case, Rear Connection, Aluminum case, Dual Scale
Pressure Port Type	NPT Male
Pressure Port Size	1/2"
Accuracy Value	±0.5%
