Industrial Pressure Switch For Harsh Environments

Original price was: $354.00.Current price is: $97.99.

Add your content…Buna-N or 316SS Diaphragm
10 A SPDT Switch
Single Setpoint with Adjsutable Deadband or Dual Setpoint with Fixed Deadband
Fixed or Adjustable Deadband

Switch Type

Pressure Range

Pressure Type

Deadband

Deadband Range

Features

Clear

SKU: PSW-308-SS Categories: Pressure Measurement, Pressure Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

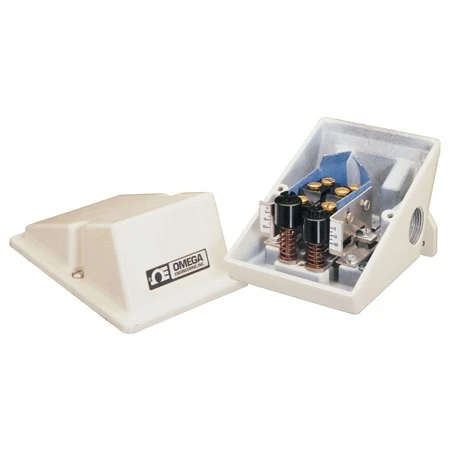

The PSW-300 series are SPDT switches with fixed or adjustable deadbands that are UL listed and CSA certified along with a NEMA-4X enclosure for harsh environments.

Ideal for use in harsh and corrosive environments, the PSW-300 Series pressure switches feature stainless steel or Buna-N diaphragm-sealed pistons or diaphragm actuators that provide repeatability of ±1% of range. Standard design allows easy access to switches. For versatility, single setpoint with adjustable deadband or dual, independently adjustable setpoints with fixed deadband may be chosen.

Switch Type	(1) 10 A SPDT, (2) 15 A SPDT
Pressure Range	40 to 200 psi, -30 to -6 inHg, 6 to 30 inH2O, 12 to 60 inH2O, 30 to 150 inH2O, 3 to 15 psi, 6 to 30 psi, 20 to 100 psi, 80 to 400 psi, 200 to 1,000 psi, 600 to 3,000 psi, 5 to 30 inH2O, 9 to 60 inH2O, 15 to 100 inH2O, 23 to 150 inH2O, 5 to 30 psi, 9 to 60 psi, 30 to 200 psi, 60 to 400 psi
Pressure Type	Gauge, Differential
Deadband	Adjustable, Fixed
Deadband Range	18 to 180 psi, 6 to 24 inHg, 4 to 27 inH2O, 5 to 54 inH2O, 18 to 135 inH2O, 2.5 to 13 psi, 3 to 18 psi, 10 to 90 psi, 45 to 360 psi, 160 to 900 psi, 400 to 2600 psi, 0.7 to 1.4 inHg, 0.7 to 1.4 inH2O, 0.7 to 1.8 inH2O, 2.1 to 4.2 inH2O, 0.7 to 1.4 psi, 0.7 to 2.1 psi, 1.4 to 3.5 psi, 1.4 to 5.6 psi, 6 to 11 psi, 10 to 42 psi, 42 to 98 psi, 1.7 to 2.8 psi, 2.8 to 5.6 psi, 4.2 to 11.2 psi, 8.5 to 90 inH2O, 3 to 27 psi, 5 to 54 psi, 0.7 to 2.0 inH2O, 1.4 to 2.8 inH2O, 2.4 to 4.2 inH2O, 1.0 to 2.1 psi, 1.4 to 2.8 psi, 5.6 to 11 psi
Features	NEMA 4X, IP66 Enclosure, Stainless Steel, NEMA 4X, IP66 Enclosure, BUNA-N Diaphragm, 316 SS Diaphragm
Pressure Port Size	1/4"
Pressure Port Type	NPT Female
