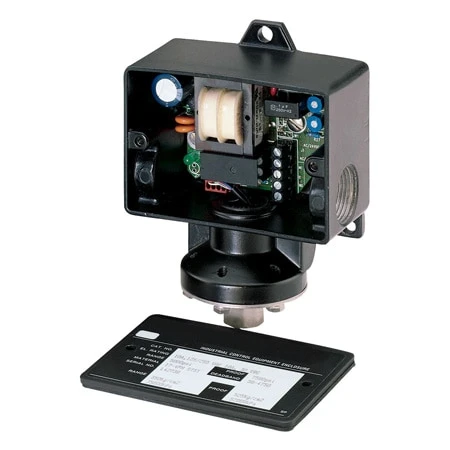

Industrial Solid State Pressure Switch For High Cycles

Original price was: $394.00.Current price is: $98.99.

Watertight, Corrosion-Resistant Case
Thin Film Sensor for Long Stabile Life – Minimum 1 Million Cycles at Rated Load
Reliable in Industrial Environments
Field Adjustable

Pressure Range

Pressure Port Type

Deadband Range

Clear

SKU: PSW601A-10K Categories: Pressure Measurement, Pressure Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA’s PSW601 series switches are designed to provide long stable life. They use a thin film sensor with a minimum life of 1 million cycles. Solid state circuitry analyzes the signal from the sensor to activate the switch at the setpoint. Deadbands are adjustable from 0.1% to 95% of range and status lights give a visual indication of switch status.

SPECIFICATIONS
Switch: UL SPDT switch
Electrical: 10 A, 125/250 Vac resistive and inductive, 10 A, 30 Vdc resistive
Temperature Limits: -29 to 71°C (-20 to 160°F)
Temperature Effects: 2%FS/25°C
Repeatability: ±0.5% Full Range
Deadband: Adjustable 0.1% to 95% of range
Power Requirements: 24 Vdc, 12 mA unactivated, 43 mA activated Optional: 110-120 Vac 50/60 Hz or 250 Vac 50/60 Hz
Enclosure: Anodized aluminum body Watertight, NEMA-4
Process Connection: ≤7500 psi: 1 /4 NPT Female > 7500 psi: 1 /4 Aminco-F (9/16-18 UNF FEMALE)
Electrical Connections: 1 /2 NPT conduit fitting with #18 AWG 450 mm (18′) insulated wire leads
Wetted Parts: 316 SS fitting and 17-4 PH stainless steel diaphragm
Dimensions: 144 H x 102 W x 59 mm D (5.7 H x 4 W x 2.3′ D)

Pressure Range	500 to 10,000 psi, 750 to 15,000 psi, 1,000 to 20,000 psi, 5 to 100 psi, 50 to 1,000 Psi, 10 to 200 psi, 100 to 2,000 psi, 15 to 300 psi, 150 to 3,000 psi, 25 to 500 psi, 250 to 5,000 psi, 3 to 60 psi, 35 to 750 psi, 375 to 7,500 psi
Pressure Port Type	High Pressure F-250-C, NPT Female
Deadband Range	509.5 to 9525 psi, 764.3 to 14287.5 psi, 1,019 to 19,050 psi, 5.1 to 95.3 psi, 51 to 952.5 psi, 10.2 to 190.5 psi, 101.9 to 1,905 psi, 15.3 to 285.8 psi, 152.9 to 2857.5 psi, 25.5 to 476.3 psi, 254.8 to 4,762.5 psi, 3.1 to 57.2 psi, 35.7 to 714.3 psi, 382.1 to 7,143.8 psi
Switch Type	(1) 10 A SPDT
Pressure Type	Gauge
Pressure Port Size	1/4"
Deadband	Adjustable
Features	NEMA 4, IP65 Enclosure
