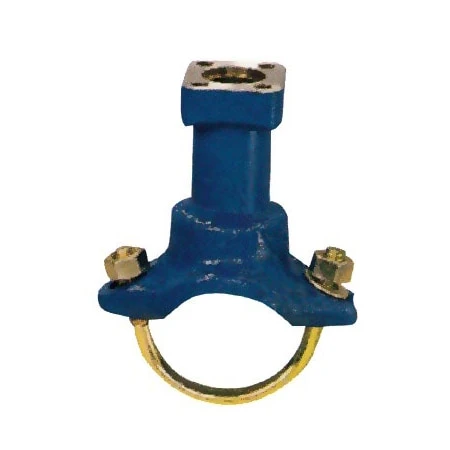

Installation Fitting For Insertion Type Paddle Wheel Flow Meters

Original price was: $252.14.Current price is: $98.99.

Available in a Large Variety of Materials
Fittings for OMEGA”s Paddle Wheel and Electromagnetic Sensors
Tee or Saddle Fittings Available

Process Connection Size

Wetted Materials

Process Connection Type

Max Operating Pressure

Max Process Temperature

Features

Clear

SKU: FP-5310M Categories: Flow Instruments, Flow Measurement Accessories, Flow Sensor Installation Fittings Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Pipe Size	PVC Sch 40 or 80 Model No. (see specification page for photo)	CPVC Sch 40 or 80 Model No. (see specification page for photo)	(mm size only) PVDF† Model No. (photo C)	(mm size only) Polypropylene† Model No. (photo E)	Stainless 316 Model No. (photo F)
1/2″	FP-5305M	FP-5305CM	FP-5105	FP-5105PO	FMG-5305
3/4″	FP-5307M	FP-5307CM	FP-5107	FP-5107PO	FMG-5307
1″	FP-5310M	FP-5310CM	FP-5110	FP-5110PO	FMG-5310
1 1/4″	FP-5312M	FP-5312CM	FP-5112	FP-5112PO	FMG-5312
1 1/2″	FP-5315M	FP-5315CM	FP-5115	FP-5115PO	FMG-5315
2″	FP-5320M FP-5320S*	FP-5320CM	FP-5120	FP-5120PO	FMG-5320
2 1/2″	FP-5325S*	N/A	N/A	N/A	FMG-5325*
3″	FP-5330S*	N/A	N/A	N/A	FMG-5330*
4″	FP-5340S*	N/A	FP-5140*	N/A	FMG-5340*
5″	N/A	N/A	N/A	N/A	FMG-5350*
6″	FP-5360S*	N/A	N/A	N/A	FMG-5360*
8″	FP-5380S*	N/A	N/A	N/A	FMG-5380*
10″	FP-5381S*	N/A	N/A	FP-5381PO*	FMG-5381*
12″	FP-5382S*	N/A	N/A	FP-5382PO*	FMG-5382*

*Models with weldolet or saddle fittings (pictured in the bottom row)
†Fittings of PVDF and POLYPROPYLENE are only available in metric sizes.
Installation Fitting For Insertion Type Paddle Wheel Flow Meters -Omega Engineering Sales Store FP Fittings1

Pipe Size	Galvanized Iron Model No. (photo G)	Carbon Steel Model No. (photo H)	Copper/Bronze(Brass) Model No. (photo I)	Metal Sensor Model No. (photo J)
1/2″	N/A	FP-5305CS	FP-5305CU	FP-5205†
3/4″	N/A	FP-5307CS	FP-5307CU	FP-5207†
1″	FP-5310GI	FP-5310CS	FP-5310CU FP-5310BR	FP-5210†
1 1/4″	FP-5312GI	FP-5312CS	FP-5312CU FP-5312BR	FP-5212
1 1/2″	FP-5 315GI	FP-5315CS	FP-5315CU FP-5315BR	FP-5215
2″	FP-5320GI FP-5320GIS*	FP-5320CS	FP-5320CU FP-5320BR	FP-5220 FP-5220S*
2 1/2″	FP-5325GI*	FP-5325CS*	FP-5325BR*	FP-5225
3″	FP-5330GI*	FP-5330BR*	FP-5230 FP-5230S*
4″	FP-5340GI*	FP-5340CS*	FP-5340BR*	FP-5240 FP-5240S*
5″	FP-5350GI*	FP-5350CS*	FP-5350BR*	FP-5250 FP-5250S*
6″	FP-5360GI*	FP-5360CS*	FP-5360BR*	FP-5260 FP-5260S*
8″	FP-5380GI*	FP-5380CS*	FP-5380BR*	FP-5280 FP-5280S*
10″	FP-5381GI*	FP-5381CS*	FP-5381BR*	FP-5281 FP-5281S*
12″	FP-5382GI*	FP-5382CS*	FP-5382BR*	FP-5282 FP-5282S*

*Models with weldolet or saddle-type fittings (pictured in bottom row)
Installation Fitting For Insertion Type Paddle Wheel Flow Meters -Omega Engineering Sales Store FP Fittings2

Process Connection Size	1", 1/2", 3/4", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 15 mm, 25 mm, 40 mm, 50 mm, 10", 12"
Wetted Materials	PVC, 316 SS, PVDF, Polypropylene, PVC 40 & 80, CPVC 80, Carbon Steel, Copper, Brass, Galvanized Iron
Process Connection Type	Molded, NPT Female, Weld-On, Union Tee, Socket Weld Mini-tap, Weld-on Mini-tap, Saddle, Slip-on Ends, Sweat-On Tee, Sweat-On, Strap-on Saddle, Braze-On, Weld-On Tee, Cement On
Max Operating Pressure	175 psi, 200 psi, 1,500 psi, 300 psi
Max Process Temperature	24 °C (75 °F), 149 °C (300 °F)
Features	Applicable only to FP-5100_5300 sensors, Not Applicable, Applicable only to FP-5100 sensors, Applicable only to FP-5200 sensors
