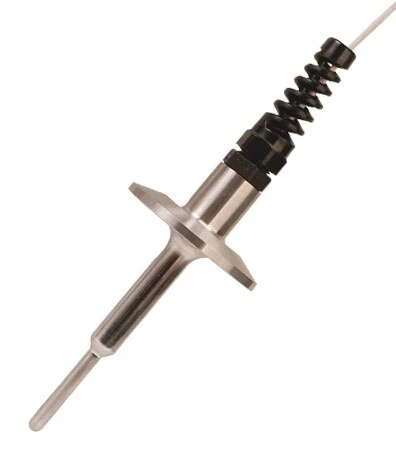

Integral Cable 10,000Ω Thermistor Sanitary Probes

Original price was: $282.21.Current price is: $99.99.

1/4′ Diameter Probe Design for Standard Duty, or
3/8′ to 3/16′ Stepped Probe Design For Heavy Duty Applications
Std. Process Connection is a 1½’-16 AMP Tri-Grip™ (Tri-Clamp® Compatible) Standard Conforming to ASME BPE-2007 to Assure Trouble-Free Interchangeability.
Sensor Can be Used in Sanitary, Hygienic and Clean-In-Place Food, Dairy, Beverage and BioPharmaceutical Processes

Probe Diameter

Probe Length

Clear

SKU: THS-10K-H-0300-D1-CB-120 Categories: Sanitary Probes, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The OMEGA™ THS-S-CB and THS-H-CB Series Thermistor Sensors are designed for use in Sanitary or Hygienic Clean-in-Place applications in the Food, Dairy, Beverage and BioPharmaceutical industries. These sensors are manufactured with 316L stainless steel housings that meet the dimensional requirements of the ASME BPE-2007 Standard, and are welded and processed to provide a clean, smooth, 32microinch or better surface finish in the wetted areas for easy cleaning.

In addition to the standard 1½-16AMP process connection, these can be provided in the following sizes and styles:

Process Connection	Model Number Code
3/4″-16AMP	-B1-
1″ and 1½”-16AMP	-D1-
2″-16AMP	-E1-
2½”-16AMP	-F1-
3″-16AMP	-G1-
4″-16AMP	-H1-

If you need a process connection that is not listed above, please contact our sales department for availability.

The probe stems are manufactured in two configurations; with a standard ¼” diameter probe for standard duty service, and a stepped 3/8″ to 3/16″ diameter probe design for good response times in heavy duty applications.

The integral cable with molded strain relief allows for easy and direct connection to your instrumentation. These sensors are also available in RTD and Thermocouple styles to accommodate any process input requirement. In addition to the standard 1½-16AMP flange design, these can be provided in a wide variety of flange sizes and styles. If you need something a little (or a lot) different, we can accommodate your needs.

This sensor is stocked with the 10,000 Ω thermistor standard, but is available in any of the following resistances:

Sensor Code	Resistance @ 25°C	Element Series
2K	2252 Ω	44004
3K	3000 Ω	44005
5K	5000 Ω	44007
10K	10,000 Ω	44006
30K	30,000 Ω	44008

Probe Diameter	0.375 in to 0.187 in reduced tip, 0.25 in
Probe Length	3 in, 4 in, 5 in, 6 in, 10 in, 2 in
Category	Thermistor
Process Temperature Range	-80 to 150°C (-112 to 302°F)
Sensor Application	Immersion Probe
Process Connection Type	1.5" Tri-Clamp
Accuracy	±0.2°C
Nominal Output	10,000 Ω @ 25°C
Sheath Material	316 Stainless Steel
Cable Insulation	PFA
Cable Length	120 in
Termination Connection Type	Stripped Leads
