Intrinsically Safe Pressure Transmitters With ATEX

Original price was: $376.00.Current price is: $97.99.

Oil Field Equipment
Upstream Oil and Gas Production
Natural Gas Compression and Transfer Control
Alternative Energy Projects

Pressure Range

Pressure Type

Additional Features

Clear

SKU: PX835-300GI Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

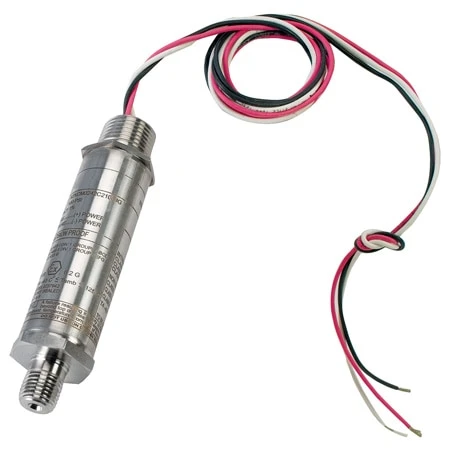

The PX835 explosion proof / flame proof pressure transmitter is ideal for a broad spectrum of pressure sensing requirements, requiring hazardous location approvals for explosion proof, flame proof or intrinsically safe. The PX835 is designed with an all welded stainless steel case and manufactured to provide the user with accurate, reliable, and stable output data. This is accomplished through the use of state of the art sensor technology combined with digital calibration to provide extremely linear and precise performance over the entire specified pressure and temperature range.

SPECIFICATIONS
Output: 4 to 20 mAdc (2-wire)
Supply Voltage: 12 to 32 Vdc Vmin = 12 V + (0.022A x loop res)
Insulation Resistance (Circuit to Case): 100M Ω @ 30 Vdc
Circuit Protection: Reverse polarity and mis-wire protected
Accuracy: ±0.5% TP; ±0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi)
Stability: ≤±0.25% span/year @ ref conditions (21°C/70°F)
Response Time: 2 ms
Storage/Process/Operating Temperature: -40 to 125°C (-40 to 257°F)
Compensated Temperature: -20 to 85°C (-4 to 185°F)
Temperature Effects (Over Comp Range): 2% span
Humidity Effects: No performance effects 0 to 95% RH, non-condensing
Vibration:
    Shock: 100 g peak, 11 ms
    Random: 10 g RMS, 20 to 2000 Hz
    Sweep: 50 to 2000 Hz, 5 g peak
Position Effect: ±0.02% typical
Electrical Termination: ½ NPT male conduit fitting and 4.6 m (15′) cable with flying lead termination
Pressure Connection: ¼ NPT male
Environmental Rating: NEMA 7, 9 (IP65)
Hazardous Area Certifications:
    Explosion Proof – cUL (USA/CNL):
    Specify PX835; Class I, Div 1 & 2, Groups A, B, C, and D; Class II, Div 1 & 2, Groups E, F, and G
    Flame Proof – ATEX: Specify PX835 II 2 G; Ex d IIC T4
    Intrinsically Safe – FM/CSA: Class I, Div 1; Class I, Div 2, non-incendive
    CE Compliance: EN 61326: 1997 + A1: 1998 Annex A, A2/2001 Heavy Industrial Immunity (Annex A table A.1); Light Industrial/Residential Emission (Table 4)
Wetted Parts: 316SS diaphragm and pressure port
Case: 304 SS
Cable Gland: Fits cable diameter 9 to 12 mm (0.35 to 0.47″)
Weight: Approximately 254 g (8 oz)

Pressure Range	0 to 300 psi, 0 to 5 psi, 0 to 10 psi, -15 to 15 psi, 0 to 15 psi, -15 to 30 psi, 0 to 30 psi, -15 to 45 psi, -15 to 60 psi, 0 to 60 psi, -15 to 100 psi, 0 to 100 psi, 0 to 10000 psi, 0 to 150 psi, 0 to 1000 psi, 0 to 200 psi, 0 to 2,000 psi, 0 to 3,000 psi, 0 to 500 psi, 0 to 5000 psi, 0 to 750 psi, 0 to 7,500 psi
Pressure Type	Gauge, Compound Gauge, Vacuum
Additional Features	Not Applicable, Cleaned for oxygen service
Accuracy Class	> 0.25%
Accuracy Value(compensated range)	±0.4%
Output Signal	Current
Electrical output	4 to 20 mA
Pressure Port Size	1/4"
Pressure Port Type	NPT Male
Connection/Termination	Cable with Conduit
Operating Temperature Range	-40 to 120 °C (-40 to 248 °F)
