IServer 2 – Virtual Chart Recorder TC

iServer 2: Introduction

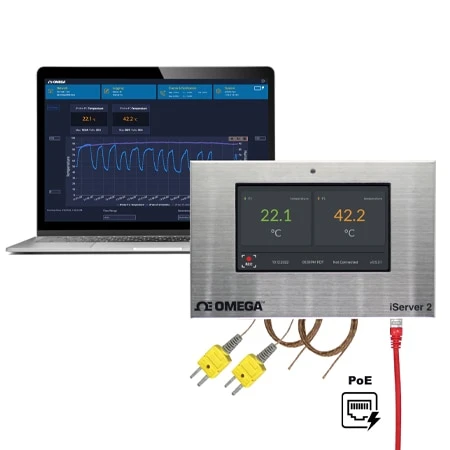

The iServer 2 virtual chart recorder offers an intuitive way to collect and display live sensor readings through a web-based user interface or by integrating the device into an existing Omega Link Ecosystem.

The iServer 2 thermocouple variant is packaged in a rugged, compact, stainless-steel housing designed for industrial applications and supports up to two thermocouples simultaneously.

Thermocouple Variants

The M12 Smart Probe variant of the iServer 2 can be purchased here:

Web UI and Live Charting

The iServer 2 web UI offers a myriad or configurable features to ensure the device operates at the preferred user preferences. Configurable features include selective data extraction, measurement and device traceability, local alarms, and adaptive transmission rates. Live charting provides real-time readings of probes attached to the iServer 2 unit.

Edge Control and Built in I/O

The iServer 2 features 2 configurable digital I/O and relay ports. These can be used for a myriad of applications including driving relays or physical alarms. The iServer 2 can also be utilized as an edge controller, with autonomous independent decision-making capabilities to generate local alarms or provide control outputs based on sensor inputs.

Alarms and Notifications

A fully configurable alarm system is available in the web UI to create events and thresholds that will trigger a notification should those scenarios be met. A modern notification system allows users to be notified via email or text.

Easy Setup

The iServer 2 is simple to install and use, and features Omega’s iServer technology that requires no special software except a web browser. The iServer 2 connects to an Ethernet Network with a standard RJ45 connector and uses TCP/IP or Modbus TCP protocols to communicate. It is easily configured with a simple menu using a web browser and is password protected. From within an Ethernet LAN, the user simply types the hostname or IP address in any web browser, and the iServer 2 provides a webpage with the current readings.

Typical Applications

The iServer 2 is great for monitoring temperature in applications such as clean rooms, computer rooms, HVAC systems, hospitals, laboratories, semiconductor fabs, electronic assembly, warehousing, museums, manufacturing, farm animal shelters, greenhouses, pharmaceutical, food processing and storage, and many more.

Power Over Ethernet

The iS2-THB-DTC variant of the iServer 2 supports Power over Ethernet (PoE) to provide the device with sufficient power to operate when connected to a PoE Injector or router that supports Power over Ethernet.

Power Failure

The iServer 2 will continue to collect data for 96-hours when powered by a standard 9 Volt alkaline backup battery (included). A failure on the Ethernet network will not interrupt data recording.

Important Note: A fully charged 9-volt battery will allow the iServer 2 to continue logging up to 10,000 data points for a period of 96 hours. When the 10,000 logged data points have been exceeded while running on the backup battery, the oldest logged data point on the Smart Probe will be overwritten starting from the oldest data point saved on the Smart Probe. A logging interval of at least 35 seconds or longer will prevent the overwriting of data during the 96-hour period the battery is in use.

Omega Link Integration

Omega Link compatible devices, such as the iServer 2, can be added to an existing Omega Link Ecosytem to provide data anytime, anywhere, through the Omega Link Cloud.

Omega Enterprise Gateway (OEG 2.x) must be used on a local PC to enable data transfer to the Omega Link Cloud. Click here to download OEG 2.x

Specifications

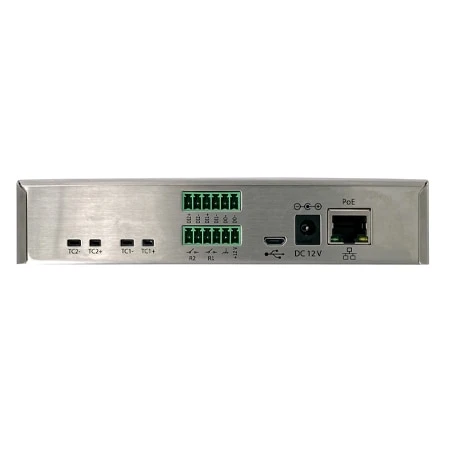

INTERFACES

Available input ports will vary by iServer 2 model.

Ethernet (RJ45):1x port (Power over Ethernet available on qualifying models)
Supported Protocols:TCP, UDP, SNMP, SNTP, ARP, ICMP, DNS, HTTP, and Telnet
Thermocouple:2x Thermocouple ports (SMP)
Digital I/O and Relays (Standard and Deluxe Models Only):Two contact inputs TTL 0.5 mA with 10k pull-up; one open collector output 150 mA @ 30 V DC
LED Indicators: 100 BASE-T, Network Link and Activity, Internet
Sample Rate: 1 sample/second max
Memory Capacity and Sample Rate: The table below lists the lifespan of the internal storage before the 11 GB of storage is filled.

Management:Device and probe configuration and monitoring through embedded WEB server
Embedded WEB Server:Servers WEB pages containing real-time data and live updated gauge views and charts within definable time intervals

MECHANICAL
Dimensions of Base Device: 101.6 mm L x 155.6 mm W x 330 mm H (4 in. L x 6.13 in. W x 12.99 in. H) not including bracket and M12 connector
Material:Stainless Steel
Display: LCD 32 mm L x 93.5 mm W
Weight: 655 g (1.44 lbs.), including battery

POWER
Power Input:9 to 12 V DC
Consumption: 4W
AC Power Adapter (Included) Nominal Output: 12 V DC @ 1.5 A
Power over Ethernet: IEEE 802.3AF, 44 V – 49 V, Power Consumption under 10 W
Input: 100 to 240 V AC, 50/60 Hz
Back-Up Battery: 9 V DC, alkaline. 96 hours at 5 seconds recording intervals and 1 second reading

ENVIRONMENTAL
Operating Temperatures – iServer 2
iServer 2 Unit:0 to 60°C (32 to 140°F)
Battery: -18 to 55°C (-0.4 to 131°F)
AC Power Adapter: 0 to 40°C (32 to 104°F)
Industrial Cable: -40 to 125°C (-40 to 257°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)

GENERAL
Configuration: Internal Web UI
Software: : Access web server using any modern web browser such as Chrome, Edge, or Firefox on the same local network; Firmware upgrade from Internet; Export probe data log to CSV files
Agency Approvals: CE, UKCA, FCC (Part 15, Subpart B, Class B of the FCC rules)
