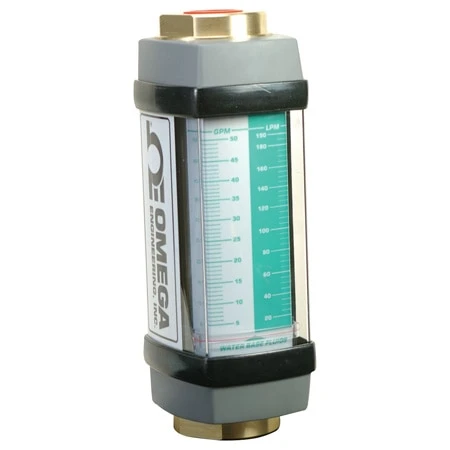

Large Capacity In-line Variable Area Flow Meters

Original price was: $385.00.Current price is: $97.99.

±2% Full Scale Accuracy
±1% Full Scale Repeatability
Mounts in Any Position
Direct Reading for Oil and Water

Media Type

Liquid Flow Range

Wetted Materials

Clear

SKU: FL-8309AB Categories: Flow Instruments, Flow Meters, Variable Area Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FL-8000A Series of general purpose flowmeters is designed to provide economical, accurate flow rate indication for oil and water. These industrial flowmeters utilize a spring-and-piston type assembly, which enables them to be mounted in any position and gives immunity to changes in viscosity. The FL-8000A meters can be used in severe environments, at up to 241.3 bar (3500 psig) and 116°C (240°F).

SPECIFICATIONS
Accuracy: ±2% full scale
Repeatability: ±1%
Connections: 1-1/4 FNPT
Dimensions: 119 x 104 mm (4.7 x 4.1″) for 116°C (240°F) units
Length: 310 mm (12-3/16″) for all units
Max Pressure: 241.3 bar (3500 psig)
Max Temperature: 204°C (400°F) at 124 bar (1800 psig) max optional
Shipping Weight:
Oil: 3.3 kg (7.3 lb)
Water: 7.6 kg (16.8 lb)
Wetted Parts: Polyphenylene sulfide/ceramic magnet and FKM O-rings; FL-8100A has aluminum body and 302 SS spring; FL-8300AB has brass body and 302 SS spring

Media Type	Water, Oil
Liquid Flow Range	10 to 100 GPM, 3 to 30 GPM, 5 to 50 GPM, 10 to 75 GPM, 10 to 150 GPM
Wetted Materials	Brass, 302 SS, Polyphenylene Sulfide, Ceramic, FKM, Aluminum, 302 SS, Polyphenylene sulfide,Ceramic, FKM
Category	Meter
Accuracy	±2%
Process Connection Type	NPT Female
Process Connection Size	1 1/4"
Max Operating Pressure	3,500 psi
Max Process Temperature	204 °C (400 °F)
Scale	Direct Read
Valve Included	No
