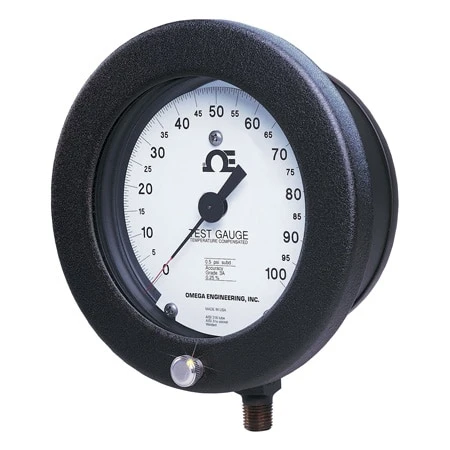

Large, High Accuracy Pressure Gauges With Adjustable Dial

Original price was: $375.00.Current price is: $98.99.

0.25% FS Accuracy
Monel Wetted Parts
Stem and Panel Mount
Mirrored Scale

Pressure Type

Pressure Range Units

Pressure Range Min

Pressure Range Max

Dial Size

Additional Features

Clear

SKU: PGT-60L-100 Categories: Analog Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA™ Test Gauges are highly accurate gauges designed for use in instrument shops, plants of all types, and laboratories throughout industry. Performance, reliability, and precision measurement are coupled with consistent accuracy in meeting the demanding service needs of various test gauge applications, such as use as a master reference gauge, in test stand measurements, for production inspection, and for verifying the accuracy of general service gauges. The dial has a stainless steel mirror ring for pointer reflection to prevent parallax error. This mirror surface reflects the pointer in any position and allows the gauge to be read with great accuracy. The lightweight, friction adjustable balanced pointer with knife edge tip assures easy reading to the smallest subdivision. The accented dial graduations have a true width equivalent to 0.25% tolerance for quick and accurate gauge checking.

SPECIFICATIONS
Case: Solid Aluminum with Epoxy-coated Black Finish
Window: Glass
Movement: Stainless Steel
Bourdon Tube: Monel
Connection: Monel
Fitting: ½ MNPT
Dial: Externally adjustable, aluminum, white background, black graduations and polished mirror band
Mounting:
   Stem: Lower Connection
   Panel or Stem: Back Connection
Accuracy: 0.25% FS
Ring:
   Lower Connection Model: Threaded Aluminum
   Back Connection Model: Mounting Flange with Hinged Cover Ring Secured by Knurled Screw
Safety Features: Solid Front with Pressure Relief Back
Media Temperature: 66°C (150°F); models will withstand continuous temperature up to 177°C (350°F), but there will be discoloration of case and dial face)
Temperature Compensation: 0.005% FS/°F

Examples of pricing for popular models is referenced in the ‘To Order’ box.

Pressure Type	Gauge, Vacuum, Compound Gauge
Pressure Range Units	psi, inHg
Pressure Range Min	0, -15
Pressure Range Max	100, 1,000, 10,000, 15, 150, 1,500, 200, 2,000, 30, 300, 3,000, -30, 400, 60, 5,000, 600, 800
Dial Size	6", 4.5", 8.5"
Additional Features	Bottom mounting, Rear Connection
Pressure Port Type	NPT Male
Pressure Port Size	1/2"
Accuracy Value	±0.25%
Accuracy Class	0.1% to 0.25%
