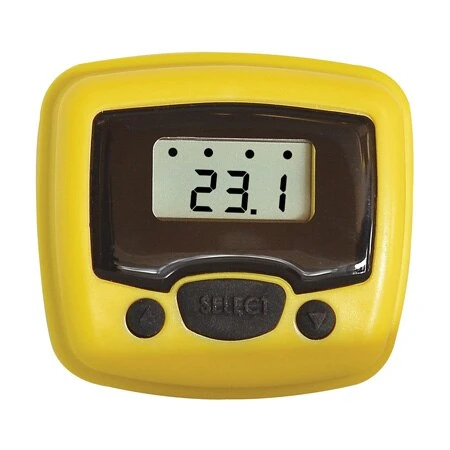

LEVEL INDICATOR AND INTERFACE, With NEMA 4X Enclosure

The LVCN-40 indicator displays tank level or volume in engineering units with 1 to 4 relay status indicators, and is compatible with LVCN210, LVCN318 or LVCN414 series level sensor that’s been configured with the provided software (V50 firmware or higher). Powered by the sensor, the field mount indicator may be located up to 4.5 m (15′) from the sensor. The LVCN-40 requires no programming. The indicator repeats the measured value, displays relay status and set-point configuration of the attached sensor. If relay set-point changes are desired, they can be easily made through the field indicator.

Specifications
Display
    Type: LCD, 6-digit with 4 relay indicators
    Units: Engineering
    Output: -99999 to 999999
Character Height: 9.5 mm (0.374″)
Decimal Point: Fixed
Dot Indication: Relay status
User Interface: Three button
Sensor Input (1): LVCN210, LVCN318 or LVCN414 series
Supply Voltage: Provided by sensor
Operating Temperature: -20 to 60°C (-4 to 140°F)
Cable
    Type: 4-conductor, #22 AWG
    Length: 1.8 m (6′)
    Jack Material: Polyurethane
Enclosure
    Rating: Nema 4 (IP65) faceplate
    Material: Polycarbonate
    Type: Panel mount
Button Material: Silicon rubber
Classification: General purpose
