Linear Thermistor Sensors With Phone Plug Connectors

Original price was: $122.71.Current price is: $85.90.

Linear Response
elements rated to 100°C (212°F) supplied with 3 m (10′) of vinyl covered lead wire
fitted with precision 44018 linear thermistor elements

Process Temperature Min

Process Temperature Range

Sensor Application

Sheath Material

Probe Diameter

Probe Length

Termination Connection Type

Clear

SKU: OL-706-PP Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Description

Laboratory

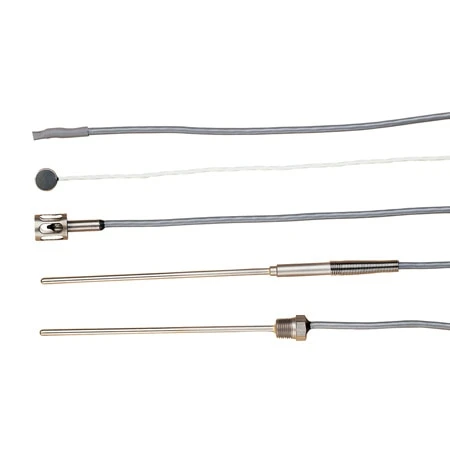

OL-701-PP General Purpose Water resistant. Can be buried for sub-soil readings.
OL-709-PP Attachable Surface Temperature Stainless steel cup, epoxy backed. Easy to tape on flat surfaces.
OL-705-PP Air Temperature Stainless steel probe suitable for test rooms, incubators, remote air readings.
OL-706-PP same as the OL-705-PP, but with an economical plastic housing.
OL-703-PP Tubular Stainless steel probe for rugged duty. Often used for liquid immersion. Immersible only to transition fitting.
OL-710-PP Tubular with Fitting Rugged stainless steel probe with pipe fitting. Suitable for use in pipes or closed vessels.

Series 700 Linear Response probe assemblies are fitted with precision 44018 linear thermistor elements rated to 100°C (212°F). Each is supplied with 10 feet of vinyl covered lead wire. A three (3) conductor phone plug is standard termination. To order longer leads from the Sales Dept, place a “-length“, in feet, after the model number up to 250 feet. Additional lead lengths are available at 80¢ per foot over 10 feet. See Section M for readout instrumentation.

For complete product specifications see the Related Links section at the bottom of this page.

Process Temperature Min	-30, 0
Process Temperature Range	-30 to 100°C (-22 to 212°F), 0 to 100°C (32 to 212°F)
Sensor Application	Air Temperature, General Purpose Probe, Immersion Probe, Air Probe
Sheath Material	Plastic, Stainless Steel, 304 Stainless Steel
Probe Diameter	0.125 in, 0.500 in
Probe Length	4.5 in, 4.50 in, 1.25 in
Termination Connection Type	Phone Plug, 6000 Ω
Category	Thermistor
Process Temperature Unit	°C
Process Temperature Max	100
Process Connection Size	1/8" NPT
Accuracy	±0.15°C
Nominal Output	6,000 Ω & 30,000 Ω @ 25°C
Number Of Wires	3
Cable Insulation	PVC
Cable Length	120 in
