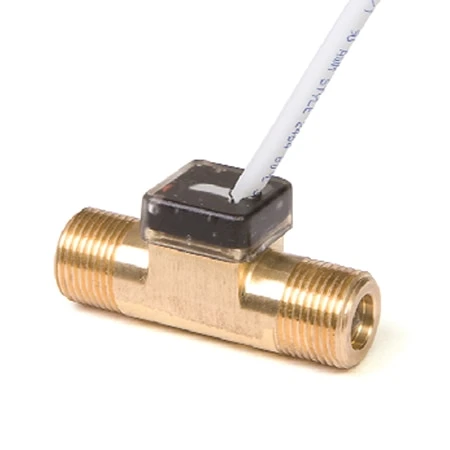

Low Cost Brass Body Turbine Flow Meters

Original price was: $127.30.Current price is: $89.11.

Compact size
Measurement in any meter orientation
Operating pressure up to 362.50 psi (25 bar)
Temperature range of –4…212° F (–20…100° C)

Flow Range

Process Connection Type

Features

Clear

SKU: BV2000BRN080A Categories: Flow Instruments, Flow Meters, Turbine Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

MEASURING PRINCIPLE

The rotor is turned by the liquid force proportional to flow. A Hall effect sensor supplies pulses that can be used for digital or analog signal processing. The generated pulses are specified as a K-factor.

OPERATING PRINCIPLE

Liquid flow causes a bladed turbine inside the meter housing to turn at an angular velocity directly proportional to the velocity of the liquid measured. As the blades pass beneath a magnetic pickup coil, a frequency signal is generated.

Each pulse is equivalent to a discrete volume of liquid. The frequency pulse is directly proportional to the turbine angular velocity and the flow rate.

The large number of pulses provides high resolution. As the mass of the turbine is small, the response time is fast. It is not necessary to install a straight length of pipeline upstream of the meter. The simple mechanical construction of the Vision meter provides a long lifespan without any loss of accuracy. Pressure spikes less than the burst pressure rating do not affect the measurements.

Flow Range	0.5 to 2.11 GPM (2 to 8 LMP), 0.8 to 6.6 GPM (3 to 25 LMP)
Process Connection Type	NPT Male, BSPP Male
Features	3 Pin (2.8 x 0.5) Mini DIN Connector, EN 60529, Cable (3 x AWG24) w/ Free Ends, 1 meter long
Media Type	Liquid
Accuracy	±3% of Reading
Output Signal	Amplified Square Wave
Max Operating Pressure	360 psi (25 bar)
Max Process Temperature	212° F (100° C)
Wetted Materials	Brass, PTFE, Graphite
Process Connection Size	3/8"
