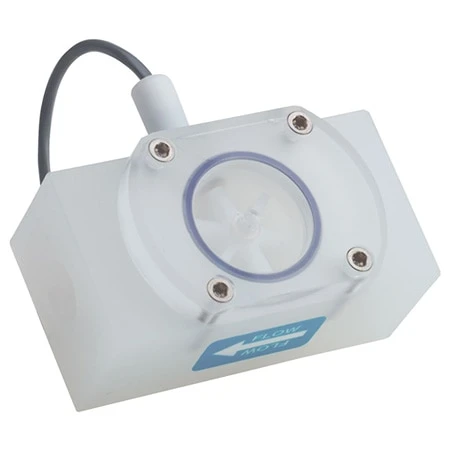

Low Flow Polyproplene & TFE Liquid Flow Meters

Original price was: $397.80.Current price is: $96.99.

Only One Moving Part
Field Replaceable Sensor
Excellent Low Flow Performance
Versatile Square Wave Signal

Flow Range

Wetted Materials

Process Connection Size

Clear

SKU: FPR301 Categories: Flow Instruments, Flow Meters, Paddlewheel Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FPR300 Series comprises versatile impeller flow meters in 3/8 to 1″ nominal pipe size that employ jewel bearings for very low minimum flows. The 6 to 24 Vdc pulse output of these meters is compatible with many different types of control, including a full range of OMEGA rate displays and controls. The FPR300 Series body material is polypropylene, with transparent acrylic covers for visual flow indication. Polypropylene covers are available as an option. The FPR310 Series has TFE housing, TFE cover (not visual), PVDF rotor, and a ceramic shaft.

SPECIFICATIONS
Accuracy: 1% FS
Max Temperature: 70°C (160°F)
Max Pressure: 10 bar (150 psi)
Power: 6 to 24 Vdc @ 2 mA
Output: NPN open collector

MATERIALS
Body:
    FPR300 Series: Polypropylene
    FPR310 Series: TFE
Cover:
    FPR300 Series: Acrylic, polypropylene (sold separately)
    FPR310 Series: TFE
Rotor: PVDF
Shaft:
    FPR300 Series: Nickel tungsten carbide
    FPR310 Series: zirconia ceramic, silicon
Bearings: Ruby
O-Ring:
    FPR300 Series: EPDM
    FPR310 Series: FKM
Dimensions: 56 H x 104 L x 53 mm D (2.2 x 4.1 x 2.1″)
Cable: 5.5 m (18′)
Max Pressure Drop:
    FPR301, FPR311: 15 psi
    FPR302, FPR312: 20 psi
    FPR303, FPR313: 20 psi
    FPR304, FPR314: 20 psi

Flow Range	0.07 to 5 GPM, 0.1 to 10 GPM, 0.2 to 20 GPM, 0.5 to 40 GPM
Wetted Materials	Nickle Tungsten Carbide, PP, Acrilic, PVDF, Saphare, EPDM O-RING, Nickle Tungsten Carbide, PP, Acrylic, PVDF, Sapphire, EPDM O-RING, Zirconium , TFE, PVDF, Sapphire, FKM O-RING
Process Connection Size	3/8", 1/2", 3/4", 1"
Category	Meter
Accuracy	±1%
Max Process Temperature	70 °C (160 °F)
Max Operating Pressure	150 psi
Output Signal	Amplified Square Pulse
Supply Power	6 to 24 Vdc
Process Connection Type	NPT Female
Display	No Display
