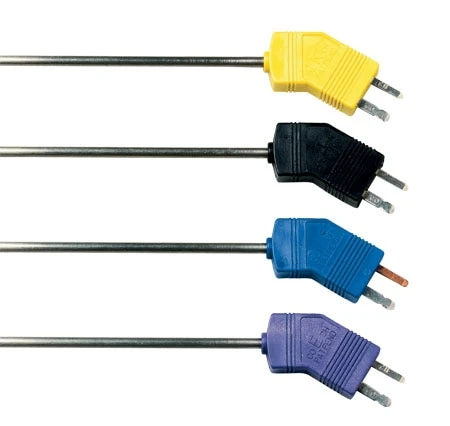

Low Noise Thermocouple Probes With Miniature Connectors

Original price was: $62.58.Current price is: $43.81.

Ground Strap Connection Provides Protection Against Electrical Noise
Ground Strap Provides Additional Mechanical Rigidity
Write-on Area for Easy Identification on Female Connector
Compatible with Standard Style Probes and Connectors

Thermocouple Type

Process Temperature Range

Sensor Application

Sheath Material

Junction Type

Probe Diameter

Probe Length

Connector Color Code Standard

Additional Feature

Clear

SKU: GJMQIN-M300U-300 Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The OMEGA ® low noise thermocouple probes and connectors maintain an electrical connection from the sheath of the probe, through the connectors, all the way to your instrumentation. This system assures high accuracy measurements, providing protection against electrical noise. The external strap maintains the electrical connection of the ground wire, and also strengthens the mechanical connection between the two connectors.The female connector features a handy write-on area, for easy identification.

Low Noise Thermocouple Probes With Miniature Connectors -Omega Engineering Sales Store gjmqss

Standard Dimension – Miniature Quick Disconnect Probes

Alloy/ANSI Color Code	Sheath Dia. in.	Model No. 6″ Length	Model No. 12″ Length
J IRON-CONSTANTAN 304 SS Sheath	0.040″ 0.062″ 0.125″	GJMQSS-040()-6 GJMQSS-062()-6 GJMQSS-125(*)-6	GJMQSS-040()-12 GJMQSS-062()-12 GJMQSS-125(*)-12
K CHROMEGA™-ALOMEGA™ 304 SS Sheath	0.040″ 0.062″ 0.125″	GKMQSS-040()-6 GKMQSS-062()-6 GKMQSS-125(*)-6	GKMQSS-040()-12 GKMQSS-062()-12 GKMQSS-125(*)-12
E CHROMEGA™-CONSTANTAN 304 SS Sheath	0.040″ 0.062″ 0.125″	GEMQSS-040()-6 GEMQSS-062()-6 GEMQSS-125(*)-6	GEMQSS-040()-12 GEMQSS-062()-12 GEMQSS-125(*)-12
T COPPER-CONSTANTAN 304 SS Sheath	0.040″ 0.062″ 0.125″	GTMQSS-040()-6 GTMQSS-062()-6 GTMQSS-125(*)-6	GTMQSS-040()-12 GTMQSS-062()-12 GTMQSS-125(*)-12

* Specify junction type: G (Grounded), E (Exposed), or U (Ungrounded).

See tips on selecting the thermocouple junction.

Want to learn more about thermocouples? Go to our thermocouple tutorial page!

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	J, E, K, T
Process Temperature Range	0 to 520°C (32 to 970°F), 0 to 300°C (32 to 570°F), 0 to 510°C (32 to 950°F), 0 to 650°C (32 to 1200°F), 0 to 260°C (32 to 500°F), 0 to 440°C (32 to 825°F), 0 to 700°C (32 to 1290°F), 0 to 920°C (32 to 1690°F), 0 to 1070°C (32 to 1960°F), 0 to 1038°C (32 to 1900°F), 0 to 1150°C (32 to 2100°F), 0 to 315°C (32 to 600°F)
Sensor Application	Immersion Probe, Air Probe
Sheath Material	Inconel® 600, 304 Stainless Steel, Super OMEGACLAD™ XL
Junction Type	Ungrounded, Grounded, Exposed
Probe Diameter	3.00 mm, 0.040 in, 0.062 in, 0.125 in, 1.00 mm, 1.50 mm
Probe Length	300 mm, 12 in, 6 in, 24 in, 18 in, 36 in, 3 in, 150 mm, 4 in, 8 in, 48 in, 600 mm
Connector Color Code Standard	ANSI (Standard), IEC
Additional Feature	Low Noise, Low Noise with Batch Calibration Cert (CAL-5), Low Noise, ROHS Compliant, Immersion Probe
Sensor Type	Thermocouple
Connector Style	Miniature Connector
