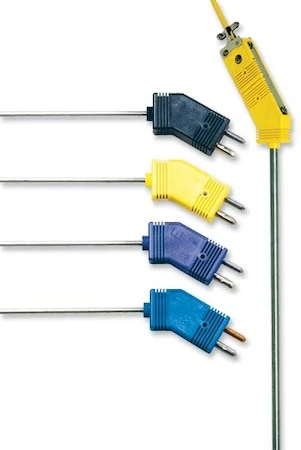

Low Noise Thermocouple Probes With Standard Size Connectors
Original price was: $65.71.$46.00Current price is: $46.00.
- Made from Special Limits of Error Material
- Connector Body Rated to 220°C (425°F)
- Ground Strap Connection Provides Protection Against Electrical Noise
- Ground Strap Provides Additional Mechanical Rigidity
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
The OMEGA ® low noise thermocouple probes and connectors maintain an electrical connection from the sheath of the probe, through the connectors, all the way to your instrumentation. This system assures high accuracy measurements, providing protection against electrical noise. The external strap maintains the electrical connection of the ground wire, and also strengthens the mechanical connection between the two connectors. The female connector features a handy write-on area, for easy identification.
Standard Dimensions – Quick Disconnect Probes with Standard Size Connectors
| Alloy/ANSI Color Code | Sheath Dia. in. | Model No. 12″ Length | Model No. 18″ Length | Model No. 24″ Length |
| J IRON-CONSTANTAN Inconel Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | GJQIN-116(*)-12 GJQIN-18(*)-12 GJQIN-316(*)-12 GJQIN-14(*)-12 | GJQIN-116(*)-18 GJQIN-18(*)-18 GJQIN-316(*)-18 GJQIN-14(*)-18 | GJQIN-116(*)-24 GJQIN-18(*)-24 GJQIN-316(*)-24 GJQIN-14(*)-24 |
| J IRON-CONSTANTAN 304 SS Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | GJQSS-116(*)-12 GJQSS-18(*)-12 GJQSS-316(*)-12 GJQSS-14(*)-12 | GJQSS-116(*)-18 GJQSS-18(*)-18 GJQSS-316(*)-18 GJQSS-14(*)-18 | GJQSS-116(*)-24 GJQSS-18(*)-24 GJQSS-316(*)-24 GJQSS-14(*)-24 |
| K CHROMEGA-® ALOMEGAâ„¢ Inconel Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | GKQIN-116(*)-12 GKQIN-18(*)-12 GKQIN-316(*)-12 GKQIN-14(*)-12 | GKQIN-116(*)-18 GKQIN-18(*)-18 GKQIN-316(*)-18 GKQIN-14(*)-18 | GKQIN-116(*)-24 GKQIN-18(*)-24 GKQIN-316(*)-24 GKQIN-14(*)-24 |
| K CHROMEGA-® ALOMEGAâ„¢ 304 SS Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | GKQSS-116(*)-12 GKQSS-18(*)-12 GKQSS-316(*)-12 GKQSS-14(*)-12 | GKQSS-116(*)-18 GKQSS-18(*)-18 GKQSS-316(*)-18 GKQSS-14(*)-18 | GKQSS-116(*)-24 GKQSS-18(*)-24 GKQSS-316(*)-24 GKQSS-14(*)-24 |
| E CHROMEGAâ„¢-CONSTANTAN Inconel Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | GEQIN-116(*)-12 GEQIN-18(*)-12 GEQIN-316(*)-12 GEQIN-14(*)-12 | GEQIN-116(*)-18 GEQIN-18(*)-18 GEQIN-316(*)-18 GEQIN-14(*)-18 | GEQIN-116(*)-24 GEQIN-18(*)-24 GEQIN-316(*)-24 GEQIN-14(*)-24 |
| E CHROMEGAâ„¢-CONSTANTAN 304 SS Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | GEQSS-116(*)-12 GEQSS-18(*)-12 GEQSS-316(*)-12 GEQSS-14(*)-12 | GEQSS-116(*)-18 GEQSS-18(*)-18 GEQSS-316(*)-18 GEQSS-14(*)-18 | GEQSS-116(*)-24 GEQSS-18(*)-24 GEQSS-316(*)-24 GEQSS-14(*)-24 |
| T COPPER-CONSTANTAN Inconel Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | GTQIN-116(*)-12 GTQIN-18(*)-12 GTQIN-316(*)-12 GTQIN-14(*)-12 | GTQIN-116(*)-18 GTQIN-18(*)-18 GTQIN-316(*)-18 GTQIN-14(*)-18 | GTQIN-116(*)-24 GTQIN-18(*)-24 GTQIN-316(*)-24 GTQIN-14(*)-24 |
| T COPPER-CONSTANTAN 304 SS Sheath | 1/16″ 1/8″ 3/16″ 1/4″ | GTQSS-116(*)-12 GTQSS-18(*)-12 GTQSS-316(*)-12 GTQSS-14(*)-12 | GTQSS-116(*)-18 GTQSS-18(*)-18 GTQSS-316(*)-18 GTQSS-14(*)-18 | GTQSS-116(*)-24 GTQSS-18(*)-24 GTQSS-316(*)-24 GTQSS-14(*)-24 |
* Specify junction type: G (Grounded), E (Exposed), or U (Ungrounded).
Read this article if you need help in selecting the thermocouple junction
| Thermocouple Type | T, E, J, K |
|---|---|
| Process Temperature Range | 0 to 370°C (32 to 700°F), 0 to 510°C (32 to 950°F), 0 to 820°C (32 to 1510°F), 0 to 650°C (32 to 1200°F), 0 to 730°C (32 to 1350°F), 0 to 440°C (32 to 825°F), 0 to 720°C (32 to 1300°F), 0 to 520°C (32 to 970°F), 0 to 620°C (32 to 1150°F), 0 to 920°C (32 to 1690°F), 0 to 1150°C (32 to 2100°F), 0 to 1070°C (32 to 1960°F), 0 to 1038°C (32 to 1900°F), 0 to 1204°C (32 to 2200°F), 0 to 260°C (32 to 500°F), 0 to 315°C (32 to 600°F) |
| Sensor Application | Immersion Probe, Air Probe |
| Sheath Material | 304 Stainless Steel, Inconel® 600, Super OMEGACLAD™ XL |
| Junction Type | Ungrounded, Exposed, Grounded |
| Probe Diameter | 0.187 in, 0.062 in, 0.250 in, 0.125 in, 1.50 mm, 3.00 mm, 4.50 mm, 6.00 mm, 1/16 in |
| Probe Length | 12 in, 18 in, 24 in, 4 in, 300 mm, 600 mm, 36 in, 6 in, 3 in, 8 in, 120 in |
| Connector Color Code Standard | ANSI (Standard), IEC |
| Additional Feature | Low Noise, Low Noise with Batch Calibration Cert (CAL-5), Immersion Probe |
| Sensor Type | Thermocouple |
| Connector Style | Standard Connector |
